Acid Resistance PP PVC CPVC Plastic Tower Packing Cascade Mini Ring for Scrubber Tower 25mm, 38mm, 50mm, 76mm

Get top-quality Acid Resistance PP PVC CPVC Plastic Tower Packing Cascade Mini Ring for Scrubber Tower in 25mm, 38mm, 50mm, 76mm at our factory. Contact us today!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Technical Specification
  • Our Advantages
  • Applications:
  • Packaging & Shipping
  • Company Profile
Overview

Basic Info.

Model NO.
BS-PCR
Place of Origin
Jiangxi, China
Model Number
BS-PCR
Packaging Details
Plastic Woven Bag, Carton Bag, etc
Processing Service
Moulding
Application
Mass Transfer
Bulk Density
48~65 g/cm3
Plastic Modling Type
Injection
Surface Area
84-214m2/M3
Certification
ISO9001:2008
Typical Application
Chemical Tower
Key Words
Cascade Ring Manufacturer
Transport Package
Plastic Woven Bag, Carton Bag, etc
Specification
customizable
Trademark
BESTN
Origin
China
HS Code
3926909090
Production Capacity
1000 Cubic Meter/Month

Product Description

Product Description


Acid Resistance PP PVC CPVC Plastic Tower Packing Cascade Mini Ring for Scrubber Tower 25mm, 38mm, 50mm, 76mm

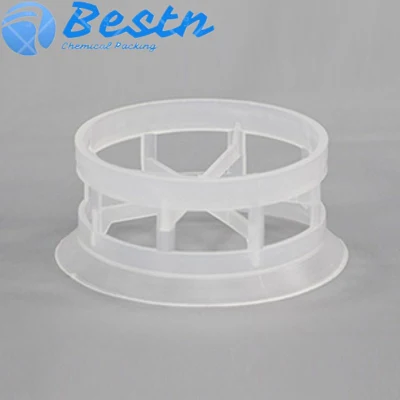

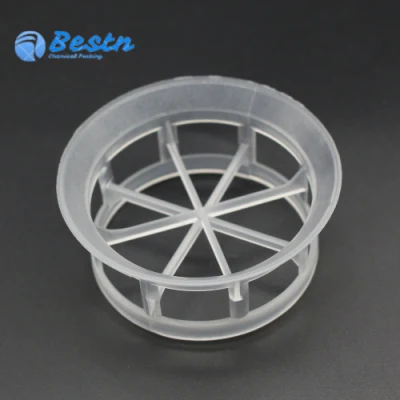

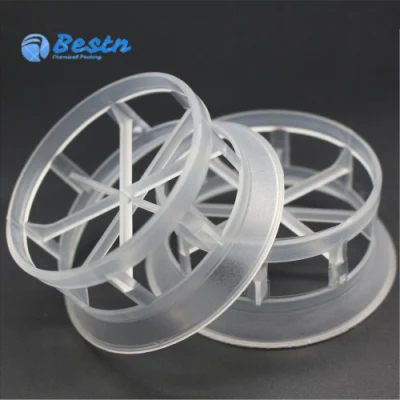

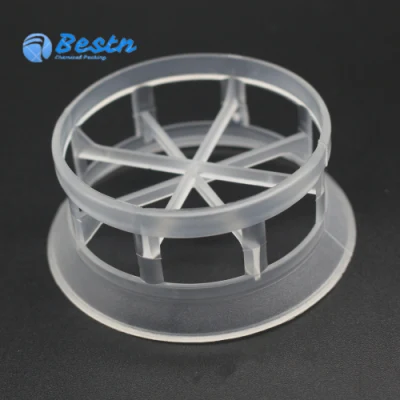

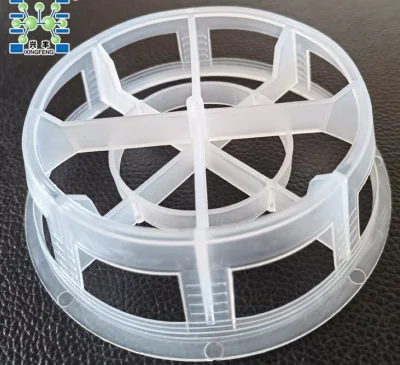

Plastic Cascade Mini Ring (CMR) packing, it's the Height-diameter ratio is 1:2 or 1:3, Because of increasing the cone flanging,and can reduce the resistance of gas, increases flow rate and increases the mechanical strength of the packed bed. Due to its structural characteristics, gas and liquid are distributed evenly and contact area of gas and liquid is increased, thus improving mass transfer efficiency. Plastic Cascade Mini Ring (CMR) is made of anti-chemical corrosion materials, such as: Polyethylene (PE), Polypropylene (PP),Reinforced Polypropylene (RPP), Polyvinyl Chloride (PVC), Chloridized Polyvinyl Chloride (CPVC) and Polyvinylidene Fluoride (PVDF),etc



Technical Specification

Technical Parameter

Name Normal Diameter*Height* Surface area Void space Bulk density No.elements Packing factor
mm Thickness mm m2/m3 % kg/m3 per/m3 m-1
  ø25 25*13*1.2 228 90 98 81500 313
Cascade ring ø38 38*19*1.4 133 93 58 27200 176
ø50 50*25*1.5 114 94 55 10740 143
  ø76 76*37*3.0 90 93 68 3420 112

Technical data of Plastic Cascade rings

Spec. D*H*T (mm) Numer per m³ Bulk density (kg/m³) Surface area (m²/m³) Free volume (%) F Factor m-1
Dg16 16*8.9*1.1 299136 135.6 370 85 602.6
Dg25 25*12.5*1.4 81500 97.8 228 90 312.8
Dg38 38*19*1 27200 57.5 132.5 91 175.8
Dg50 50*25*1.5 10740 54.8 114.2 92.7 143.1
Dg76 76*37*3 3420 68.4 90 92.9 112.3

Physical & chemical properties of plastic Random Packing:
Performance / Material PE PP RPP PVC CPVC PVDF
Density (g/cm3) 0.94-0.96 0.89-0.91 0.93-0.94 1.32-1.44 1.50-1.54 1.75-1.78
Operation Temp.(oC) 90 >100 >120 >60 >90 >150
Chemical corrosion resistance Good Good Good Good Good Good
Compression Strength(Mpa) >6.0 >6.5 >7.0 >6.0 >8.0 >10.0

The bulk density given here is based on PP material.

Our Advantages

Acid Resistance PP PVC CPVC Plastic Tower Packing Cascade Mini Ring for Scrubber Tower 25mm, 38mm, 50mm, 76mm
1.Strengthened resin sand, high temperature resistant advanced purification materials.

2.It is safe and easy to operate due to its optimized craftsmanship with fine and smooth surface treatment and burr-free.

3.It features superior oxidation resistance due to its qualitative materials and reasonable production process.

Applications:

Temperature in media ranges from 60 Degree C to 150 Degree C.
Used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.
Acid Resistance PP PVC CPVC Plastic Tower Packing Cascade Mini Ring for Scrubber Tower 25mm, 38mm, 50mm, 76mm

Packaging & Shipping

Shipping and Packing

Package Type Container Load Capacity Delivery time Quality
Insurance
Payment Terms
20 GP 40 GP
Ton bag 20 m3 40 m3 Within 7-14 days Chinese National Standard; Offer quality assurance as request. T/T, L/C, Paypal, West Union
Plastic bag 20 m3 40 m3
Paper box 20 m3 40 m3
Wooden box 20 m3 40 m3
Acid Resistance PP PVC CPVC Plastic Tower Packing Cascade Mini Ring for Scrubber Tower 25mm, 38mm, 50mm, 76mm

Company Profile

Acid Resistance PP PVC CPVC Plastic Tower Packing Cascade Mini Ring for Scrubber Tower 25mm, 38mm, 50mm, 76mm
Pingxiang Bestn Chemical Packing Co., Ltd was established in 2007, It is a professional manufacturer and exporter that has more than 10 years experience in Chemical Packing. We are located in Hi-Tech Industrial Park, Development area, Pingxiang city, Jiangxi Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Our main products are molecular sieve, activated alumina, ceramic ball, honeycomb ceramics, Plastic lamella clarifiers, MBBR Media, random and structured chemical packing in ceramic, plastic and metal material, can be used in all types of petrochemical chemical processes and environmental application.Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, we have received ISO9001: 2008 certificate, SGS report, etc. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching seven Continents.Since its foundation, our company keeps living up to the belief of "honest selling, best quality, people-orientation and benefits to customers" We are doing everything to offer our customers with best services and best products. We promise that we will be responsible all the way to the end once our services begin.If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with you, also warmly welcome to visit our factory.
