Boyuan Wholesale Turbocharger Nozzle Ring Manufacturer

Boyuan Wholesale Turbocharger Nozzle Ring Manufacturer is a trusted factory providing high-quality turbocharger nozzle rings at competitive prices.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Product Parameters
  • Company Profile
Overview

Basic Info.

Model NO.
P17.1
Surface Roughness
Ra3.2
Machining Tolerance
+/-0.15mm
Standard
ASTM
Certification
ISO9001:2018
Blade Thickness
0.5mm
OEM
Service
Raw Material
316 or 317
Transport Package
Plywood Case
Specification
diamteter: 640mm
Trademark
BOYUAN
Origin
Weifang
Production Capacity
50000

Product Description

Product Description

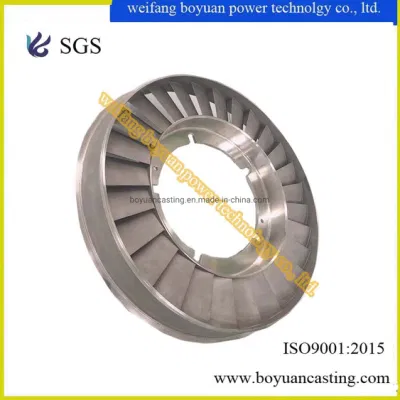

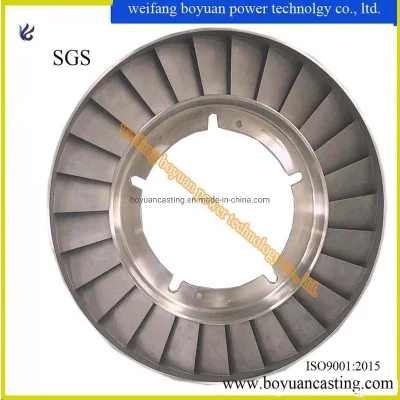

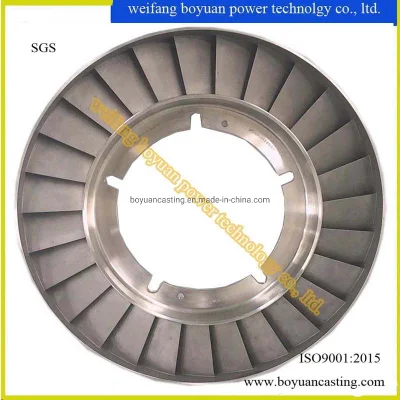

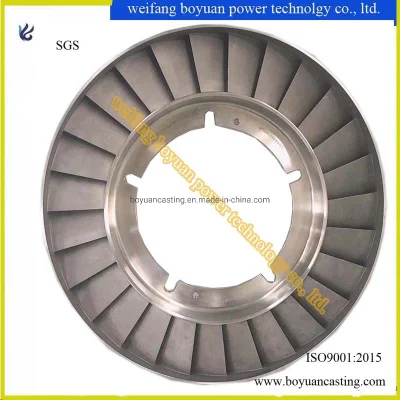

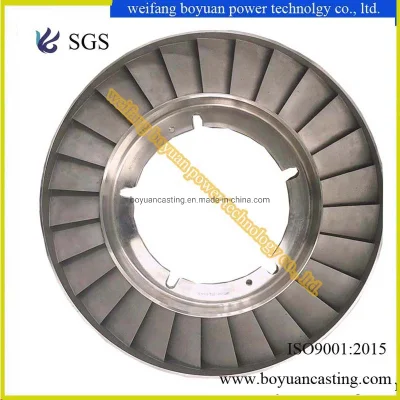

   Superalloy nozzle ring used for Locomotive and Marine turbocharger, turbo nozzle ring be finished by integral casting. And casting method of noizzle ring is lost wax  investment & vacuum casting, casting surface smoothness can meet Ra3.2μm, production process of nozzle ring is Silica sol process. The blade thickness is 0.5mm.
   The material of nozzle ring is superalloy IN718. Please see the material chemical composition:

Element C Cr Co Mo Ni Fe Mn Si S Cu
Content ≤0.08 17.0-21.0 ≤1.0 2.8-3.3 50-55 BAL ≤0.35 ≤0.35 ≤0.015 ≤0.30
Element Al Ti
Content 0.2-0.8 0.65-1.15
Detailed Photos
Boyuan Wholesale Turbocharger Nozzle Ring Manufacturer
Boyuan Wholesale Turbocharger Nozzle Ring Manufacturer
Boyuan Wholesale Turbocharger Nozzle Ring Manufacturer






Product Parameters
Item Annual output Max weight&size material Remark
Lost wax vacuum casting 200TON 60KG φ700 NI BASE ALLOY, HIGH HEAT RESISTING, HIGH CORROSION, RESISTING ALLOY IN718,IN713C,IN713LC,IN738,IN738LC,IN792,IN625,MAR247,K465,K424,K417G...
Company Profile

     Weifang Boyuan Power Technology Co., Ltd. specializes in the production of Aluminum Alloy impeller products and High temperature alloy impeller products,stainless steel impeller products. The company has a professional team that has long been engaged in the casting, processing and testing of impellers. Products are widely used in turbochargers, aero engines, industrial fans, compressors, blowers, rail transit, heavy mining machinery industry, refrigeration industry, marine engineering industry.  The company has professional production line of Aluminum Alloy low pressure casting and high temperature alloy casting,stainless steel casting equipped with advanced inspection instrument.
    About casting production equipment we have:
    * Aluminum low pressure casting furnace
    * Vacuum casting furnace
    * Injection wax machine
    * Shell drying line
    * Constant temperature and humidity room
    * Plaster shell chamber
    * Sandblasting machine
    * Heat treatment furnace

Boyuan Wholesale Turbocharger Nozzle Ring Manufacturer
Boyuan Wholesale Turbocharger Nozzle Ring Manufacturer
Boyuan Wholesale Turbocharger Nozzle Ring Manufacturer



    About machining equipment we have:
    * DMG five axis machining center
    * Three axis machining center
    * Doosan CNC center Lathe
    * General CNC Lathe
    * Dynamic balancing machine
    * Overspeed testing machine
    * Radial Drilling machine


Certificate
Boyuan Wholesale Turbocharger Nozzle Ring Manufacturer



Boyuan Wholesale Turbocharger Nozzle Ring ManufacturerBoyuan Wholesale Turbocharger Nozzle Ring Manufacturer


Boyuan Wholesale Turbocharger Nozzle Ring Manufacturer Boyuan Wholesale Turbocharger Nozzle Ring Manufacturer
