China Diesel Grass Seed Spraying Machine Hydroseeder Hydroseeding Machine

China Diesel Grass Seed Spraying Machine Hydroseeder Hydroseeding Machine - We are a factory producing high-quality hydroseeding equipment for efficient grass seed spraying.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Feature
  • Product Parameters
  • Related Products
  • Detailed Photos
  • Product Application
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
LHS series
Power Source
Diesel
Name
Seeds Spraying Machine
Engine Power
83kw
Output
90cbm/H
Exit Pressure
1.05MPa
Maximum Range of Fire
80m
Tank Captacity
8000L
Working Tank Captacity
7600-7800L
Application
Wheat, Rice, Corn, Beans, Trees, Fruit
Application Field
Agriculture
Function
Dual Seeding and Fertilization
Planting Machine Type
Seedling Planting Machine
Fertilizing Machine Type
Full-size Fertilizer
Ditching Mode
Continuous Ditching
Sowing
Broadcast Seeder
Certification
CE, ISO9001:2008, SGS
Transport Package
Nude Package or According to Customer Requirement
Specification
CE, ISO, SGS
Trademark
Leadcrete
Origin
China
Production Capacity
50sets/Week

Packaging & Delivery

Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
300.000kg

Product Description


China Diesel Grass Seed Spraying Machine Hydroseeder Hydroseeding Machine

China Diesel Grass Seed Spraying Machine Hydroseeder Hydroseeding Machine
Product Description

Spray seeding is more and more applied in road greening. The application of seeding spraying technology in vegetation restoration and slope protection projects.

LHS series artificial soil spraying seeder involves in planting permanent vegetation, spraying slurry, slope protection, grassing, and erosion prevention.

Soil spraying seeder driven by single diesel, electronic control, easy operation, especially suitable for outdoor conditions, applicable to all kinds of rock slopes, hard soil, poor soil, acidic soil, arid zones, clay soil, and coastal dam. etc
China Diesel Grass Seed Spraying Machine Hydroseeder Hydroseeding Machine
China Diesel Grass Seed Spraying Machine Hydroseeder Hydroseeding Machine

Product Feature

Feature of  China diesel grass seed spraying machine hydroseeding

    1. The material of main structure is made of high-quality structural steel. No matter how worse the conditions are, it ensures the seeder is sturdy and solid. And it has reasonable, generous appearance. Painted with imported painting to guarantee of three-year no fading.
    2. Advanced technology, it even works for mud materials that have poor mobility, no blocking, and no stopping, well adaptation of various materials, and big output pressure.
    3. Two mixing models, blades mixing and circular spray, are powerful enough to ensure the spraying mixture in the planting process is in fully suspended and fully mixed stated, evenly emitting the mixture of raw materials at one time.
    4. It has strong power, the maximum head can be above 60m, and be equipped with many types of spray guns, which extend the maximum operation scope from 200m to 300m; fan-shaped spray nozzle or mist spraying is more suitable for close-distance planting to meet various requirements.
    5. This machine has wide usage, not only can be applied in spraying planting for rice, grass, trees, flowers, seeds, and other crops, but also in irrigation, fertilization, pesticide spraying, and other daily care, and soil improvement work. This machine can also mix different materials like seeds, fertilizer, soil conditioner, seed adhesives, moisturizer, straw, fiber covering materials, yellow soil, red soil, sandy soil, and clay, evenly emitting slurry materials with big proportion, high and super concentration
    6. Our machine is a soil-spraying seeder, but it can also use as a hydroseeder.

China Diesel Grass Seed Spraying Machine Hydroseeder Hydroseeding Machine
Advantages:
Factory directly supplies.
Professional sales team and experienced workers.
Competitive price according to good raw material purchasing ability, and high work efficiency
Best manufacturer in China.
Good after-sales service
Spare parts supply timely
 China Diesel Grass Seed Spraying Machine Hydroseeder Hydroseeding Machine

After-Sales Service
During-sale service for mud and seeds spraying machine
1. Acceptance of the product
2. Assist client product construction scheme

After-sale service for hydro grass seeder machine
1. Spare parts will be delivered as you need them.
2. Engineers will go to the client's site for guiding the installation and test-running;
3. Warranty period: 12 months from the installation and commissioning;


Product Parameters

Data of Hydroseeder:

Model LHS0483 LHS0683 LHS0883
Diesel engine LRC4108T LR4A3Z LR4A3Z
Power 63kw 83kw 83kw
Tank capacity 4m3 6m3 8m3
Output 1350L/min
Output pressure 8kgf/cm2
Max.Solid Content Volume ratio 30%, weight ratio 60%
Max. aggregate 20mm
Mixing mode Hydraulic infinitely variable, blades mixing and circular jet mixing
Rotating speed of mixer shaft 0-110rpm
Max. horizontal conveying distance 38-45m with gun
100-120m with hose
Max. vertical conveying distance 40m with gun
80m with hose

Height of fence 800mm
Net weight 2650kg 3200kg
Dimension 4600*2200*2400mm 5500*2200*2500mm

Date sheet of our diesel engine:
Model LR4A3Z
Type of diesel engine Turbo diesel engine, water-cool
Cylinder No. 4 pieces
Cylinder dia.×Piston stroke(mm) 105×125
Capacity(L) 4.33
Rated power/rotating speed(kw/r/min) 83/2400
Max. torque point rotating speed(r/min) 1600-1800
Torque reserve 22-25%
Fuel consumption rate of Declared working condition(g/kw·h) ≤245
Fuel consumption rate of Max. torque working condition(g/kw·h) ≤242
Oil consumption rate of Declared working condition (g/kw·h) ≤1.63
Idle speed(r/min) 1000±30
Cold starting performance -10°C can start easily(without any assist)
High altitude(m) ≤2200
Ambient temperature of diesel engine working -10°C~40°C
Direction of turning of diesel engine Anticlockwise(facing power output side)
Net weight(kg) 430

LHS series hydroseeding machine is driven by diesel engine, tank capacity has 2000L,3000L, 6000L, 8000L,1300L, and 15000L tank capacity for option. They with an exclusive pump to handle the thickest slurries.

We can customize the capacity, color, and wheels according to your requirements!
Related Products
Click on the picture to view detailed parameters
China Diesel Grass Seed Spraying Machine Hydroseeder Hydroseeding Machine
China Diesel Grass Seed Spraying Machine Hydroseeder Hydroseeding Machine
China Diesel Grass Seed Spraying Machine Hydroseeder Hydroseeding Machine
China Diesel Grass Seed Spraying Machine Hydroseeder Hydroseeding Machine
China Diesel Grass Seed Spraying Machine Hydroseeder Hydroseeding Machine
China Diesel Grass Seed Spraying Machine Hydroseeder Hydroseeding Machine
China Diesel Grass Seed Spraying Machine Hydroseeder Hydroseeding Machine
China Diesel Grass Seed Spraying Machine Hydroseeder Hydroseeding Machine

Please contact us for product catalog and prices.

Detailed Photos

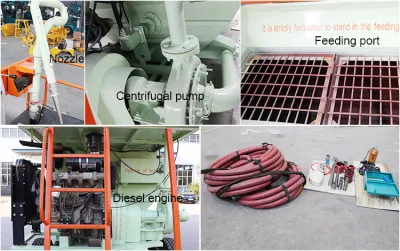

Details of Hydroseeder:

China Diesel Grass Seed Spraying Machine Hydroseeder Hydroseeding Machine
Product Application

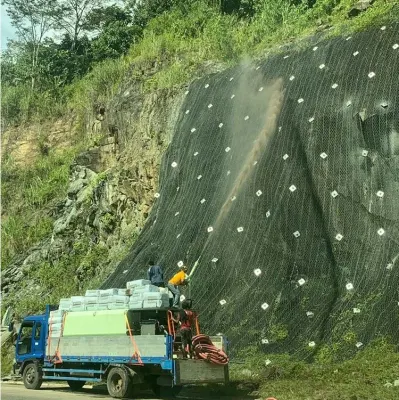

Application of Hydroseeder:

China Diesel Grass Seed Spraying Machine Hydroseeder Hydroseeding Machine
China Diesel Grass Seed Spraying Machine Hydroseeder Hydroseeding Machine China Diesel Grass Seed Spraying Machine Hydroseeder Hydroseeding Machine
Company Profile

Company Information:

China Diesel Grass Seed Spraying Machine Hydroseeder Hydroseeding Machine
China Diesel Grass Seed Spraying Machine Hydroseeder Hydroseeding Machine
China Diesel Grass Seed Spraying Machine Hydroseeder Hydroseeding Machine
FAQ

1. Q: What is the guarantee period of hydroseeding equipment?

   A: It is one year count from one month after the shipping date except for wearing parts. We will send some wearing parts of machine and diesel engine when delivery.

2. Q: What is the diesel engine brand of hydroseeding machine?

   A: Usually we adopt Dongfanghong or Huangfeng diesel which is famous in China, we also can supply Cummins diesel and Deutz diesel.

3. Q: What is the ratio of soil, grass seed, fertilizer, etc?

   A: The ratio depends on the soil locally. So it is better for you to take some photos of your soil, and tell us the slope angle, height, soil condition, etc. then we will recommend you a suitable ratio.

4. Q: Can you supply or introduce to me grass seed supplier?

   A: No problem, our factory is manufacturing and selling hydroseeder for many years in China, and there is a good cooperator of grass seed suppliers.

5. Q: What is the horizontal and vertical working distance of hydroseeding machine?

   A: Our hydroseeding equipment max. horizontal spraying distance is 38-45m with gun, max. vertical spraying distance is 40m with gun; max. horizontal conveying distance is 100-120m with hose, max. vertical conveying distance is 80m with hose.

6. Q: If your projects are slope greening, what is the slope ratio?

   A: For our PB series hydroseeder, its maximum slope angle is 60°, if it is larger than 60degree, it is better to choose our PB-15SR and PB-25SR series thicker hydroseeder.

7. Q: Which project will you do with hydroseeder?

   A: For slope greening, golf course, lawn, or other landscape projects.

If any color and logo are acceptable, please leave an inquiry to know more details about price, packing, shipping, and discount.
