Basic Info.
Model NO.
UGY630VS
Rated Current
909.7A
Delivery Time
35days After We Received Your Deposit
Frequency
50Hz
Warranty
1 Year or 1000 Running Hours
Certificate
ISO/Ce/Coc
Rated Power
504kw
Transport Package
Packed in Standard Seaworthy Packing
Trademark
UNIV
Origin
Zhejiang, China (Mainland)
Production Capacity
10000 Set/Sets Per Year
Product Description

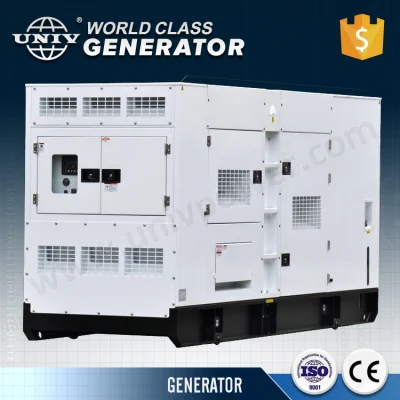

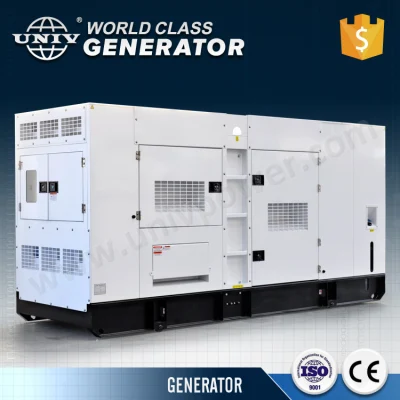

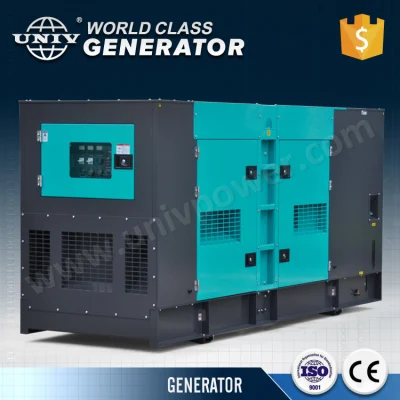

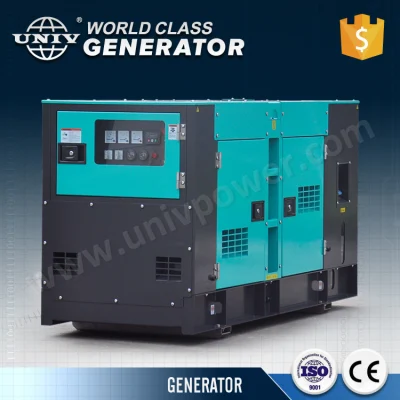

China most professional silent type 630kva volvo penta diesel
generator factory with CE
| Product Name | china most professional silent type 630kva volvo penta diesel generator factory with CE | ||
| Model | UGY630VS | ||
| Rated output (KW/KVA) | 504kw/630kva | ||
| Rated voltage (V) | 230/400V | ||
| Rated current(A) | 907.9A | ||
| Rated frequency | 50Hz | ||
| Power factor | 0.8lagging | ||
| Noise level dB(a) | 76/1m | ||
| Excitation | Brushless self-excitation | ||
| Phase Number and connection | 3-phase 4-wire system | ||
| Diesel Engine | diesel engine,4 stroke,water cooled,6 cylinders,turbocharged | ||
| Alternator model | Stamford,brushless self-excited,IP23,Class H. | ||
| Rated Power (kw/1500rpm) | 504kw/630kva | ||
| Fuel consumption (g/kw*h) | ≤238 | ||
| Cylinder number | 6cylinders | ||
| Displacement ( L) | 14 | ||
| Cooling system | Water cooling | ||
| Environmental Conditions | Altitude≤1000M, Cooling air temperature -15°C~ 40°C, Relative humidity≤90% | ||
| Start Method | 24V Electric start | ||
| Dimension of set (mm) | L | 4800 | |
| W | 1600 | ||
| H | 2400 | ||
| Net weight of set (kg) | 9000kgs | ||
| Other spare parts (1 piece) | Gallus Air filter element Diesel oil filter element Machinery oil Specification Special tool | ||
1) Q: Can i have your quotation?
A: First, please offer us the information of your electric power capacity & basic voltage, frequency requirements,without these parameter, we are not able to recommend you the suitable machine
2) Q: Do you have overseas service?
A: No,but we normally help our customers to solve the problems through phone,
Email, skype, internet video. high efficiency. We offer one year guaranteen, within
one year, if component of the machine broken, we freely offer the component, but
the delivery fee should be paide by client
3) Q: How about the payment term
A: T/T 30% deposit, 70% of balance paid before shipment.
