PRODUCTS DETAILS

Basic Info.

Model NO.
CUM-P
Object
Battery Materials, Non-Metallic Minerals
Drive
Electric
Crushing Degree
Intermediate Crusher
Crushing Style
Grinding and Impact
Principle
Fixed Culling
Cutter Material
High-Speed Steel
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
>300MPA
Tongs′ Features
Adjustable Tongs
Fineness
50~200mesh
COM
Q-235, SS304 or 316L
Particle Size
Available D50:2-45um
Control
PLC
Certificate
ISO CE
Rotor
Single Rotor / Multiple Rotor
Power(Kw)
4-75
Production Capacity(Kg/H)
200-10000
Transport Package
Sea
Specification
Customized
Trademark
ALPA
Origin
Shandong
HS Code
8474209000
Production Capacity
10~2000kg/H

Packaging & Delivery

Package Size
4000.00cm * 5000.00cm * 6000.00cm
Package Gross Weight
10000.000kg

Product Description

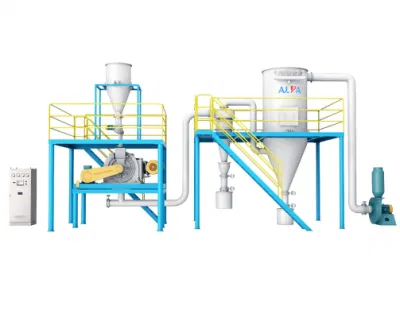

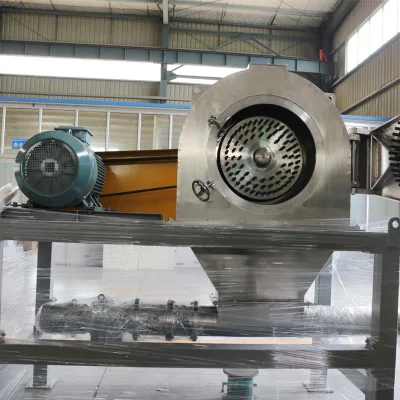

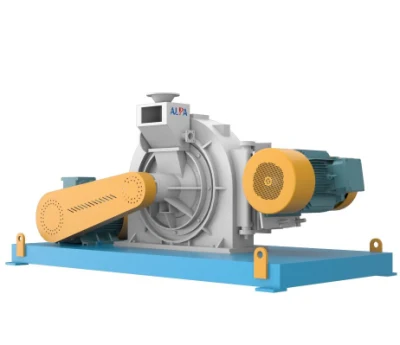

CUM-P Pin Mill

Single Rotor / Multiple Rotor

Widely used in chemical, inorganic salt, medicine, food, pigments, dyes, pesticides, battery materials, minerals, refractory materials and other industries.
D50: 10-45um Impact Grinding Machine Manufacturer Pin Mill for Soy Protein Powder
Features and Advantages

* Available D50:10-45μm.
* No sieve, smooth discharge, high capacity and low operation cost.
* High line speed, finer particle size.
* Compact structure and small occupation. easy to disassemble and clean
* Lower installation power, wide application, high cost-performance.
* Different installation combinations, applicable to different process requirements
* Grinding is in closed system, low dust and noise, clean and environmentally friendly production process.
* PLC control system, easy operation.
* Single or double drive, if upgraded to dual power, reaching 200m/s or more line speed, to obtain the maximum grinding force
* The motor can be connected with a belt to increase the speed and break through the problem of high-speed motors without the well-known motor brand.
* Can be used in series with multi-stage classifiers to produce products with multiple sizes at one time.
* Optional explosion-proof design, meet the ultra-fine grinding processing requirements of flammable and explosive oxide
materials
* High-temperature, low-temperature, normal-temperature, airtight cycle, Inert gas cycle designs are available, for different
grinding requirements of different materials.
D50: 10-45um Impact Grinding Machine Manufacturer Pin Mill for Soy Protein Powder



Working Principle

A pin mill(pin mill grinding,micro pin mill,fine pin mill,pin mill grinding, pin mill Crush, pin mill pulverizer,pin grinding
equipment) is a mill machine that comminutes materials by the action of pins that repeatedly move past each other.

Much like a kitchen blender, it breaks up substances through repeated impact.

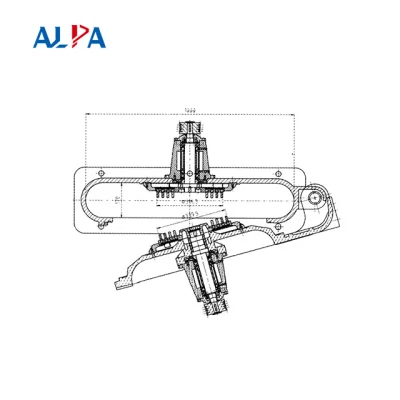

The mill is a type of vertical shaft impactor mill and consists of two rotating discs with pins embedded on one face.

The discs are arrayed parallel to each other so that the pins of one disk face those of the other. The substance to be homogenized is fed into the space between the disks and either one or both disks are rotated at high speeds.

Pin mills can be used on both dry substances and liquid suspensions.Pin mills are commonly use in the manufacture of
pharmaceuticals, as they can achieve particle sizes as low as a few micrometers.

The material is evenly fed into the grinding chamber by the feeding system, strongly impacted by the high-speed rotating disc.

At the same time, it is subjected to various comprehensive forces such as friction, shearing and collision between the static disc and the ring gear to grind material.

The moving disc and static disc can be combined in different structural forms according to nature of material to meet the grinding requirements of different materials.

ALPA is China's largest pin mill manufacturer and supplier. We have an advanced factory that offers unique processes and designs.


Technical Parameters

Parameter / Model 160 260 360 500 630 800 1000
Diameter of coarse grinding disc (mm) 180 270 380 580 640 750 1000
Rotating speed of coarse grinding disc (r/min) 9000 6000 4680 2480 2300 2150 1800
Linear speed of coarse grinding disc (m/s) 84.8 84.8 93.1 75.3 77.1 84.4 94.2
Ground power (kW) 4 7.5 22 37 45 55 75
Dual power (kW)     22+30   2x55
Diameter of micronized grinding disc (mm) 160 260 360 520 630 730 1000
Micro powder type speed (r/min) 12000 7500 5550 3850 3200 2800 2050
Linear speed of micro-powder grinding disc (m/s) 100.5 102.1 104.6 104.8 105.6 107.0 107.3
Micro powder type power (kW) 4 7.5 22 37 55 75 90
Air volume (m³/h)(max) 360 1000 2400 3200 5700 7500 10000

Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.

Related Engineering Cases

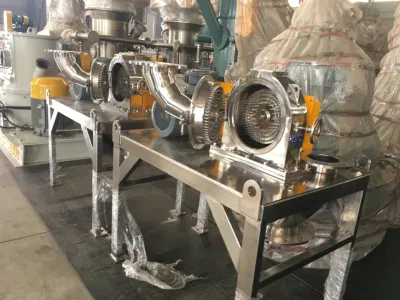

D50: 10-45um Impact Grinding Machine Manufacturer Pin Mill for Soy Protein PowderD50: 10-45um Impact Grinding Machine Manufacturer Pin Mill for Soy Protein Powder
