Ditron-Tech Factory Direct Price Perfume Vial Essential Oil Bottle Olive Oil Filling Machine

Get the best deals on perfume vial, essential oil, and olive oil filling machines with Ditron-Tech Factory Direct Prices. We are the trusted factory for all of your filling machine needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
CD-1, CD-2, CD-4
Automatic Grade
Manual
Material Type
Liquid
Filling Valve Head
1/2/4(Can Be Customized)
Feed Cylinder Structure
Single-Room Feeding
Dosing Device
Plunger
Filling Principle
Negative Pressure
Packaging Container Lifting Structure
Pneumatic
Structure
Linear
Packaging
Small Bottle
Packaging Material
Liquid,Paste,Sauce
Packaging Type
Cans, Bottles, Bags
Filling Material
Flowing Liquid
Transport Package
Wooden Box
Specification
5-3500ml(Can be customized)
Trademark
Chengde
Origin
Qingzhou City, Weifang City, Shandong China
HS Code
8422303090
Production Capacity
1000PCS Per Mouth

Product Description

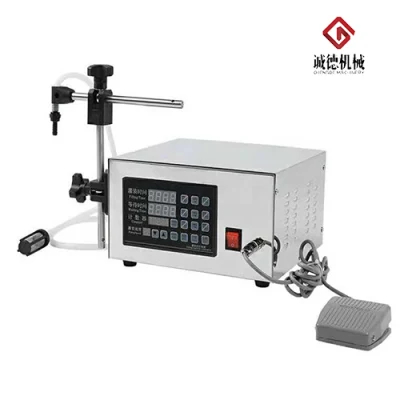

Ditron-Tech Factory Direct Price Perfume Vial Essential Oil Bottle Olive Oil Filling Machine
Product Introduction

1) The gear pump is driven by magnetic force, and the pump head is connected with the motor without shaft. Therefore, there is no need to worry about the motor burning out due to the high load of the pump.
2) The pump head and motor are imported from Japan, and other parts are made in Taiwan. They have stable functions and long service life.
3) The pump head is made of 316L stainless steel, which is acid and alkaline resistant and corrosion resistant.
4) The motor operation is adjusted by potentiometer, and the accuracy of filling time can be reduced to 0.01 seconds, so as to ensure the accuracy of filling, and the deviation is less than 2%.
5) The filling capacity is 5ml, and you can choose any volume according to your needs.
6) Complete functions, manual operation, intermittent pedal filling, automatic intermittent filling. The interval time can be adjusted.
7) It is widely used in various industries and can be used to fill almost any flow of liquid, especially for oil, washing liquid, acid-base solution and high corrosion-resistant liquid.
Ditron-Tech Factory Direct Price Perfume Vial Essential Oil Bottle Olive Oil Filling Machine
Ditron-Tech Factory Direct Price Perfume Vial Essential Oil Bottle Olive Oil Filling Machine





Features
The main advantages of peristaltic pump are: no pollution: the fluid only contacts the pump pipe, not the pump body;
High accuracy: repetition accuracy, high stability accuracy; Low shear force: it is an ideal tool for transporting shear sensitive and aggressive fluids; Good sealing: with good self-priming ability, it can idle and prevent backflow; Simple maintenance: no valves and seals; These are not what many ordinary pumps can do.

Detailed Images

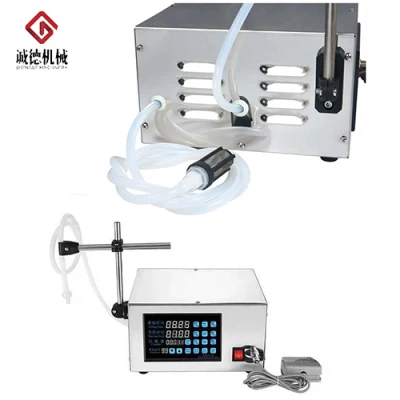

Ditron-Tech Factory Direct Price Perfume Vial Essential Oil Bottle Olive Oil Filling Machine

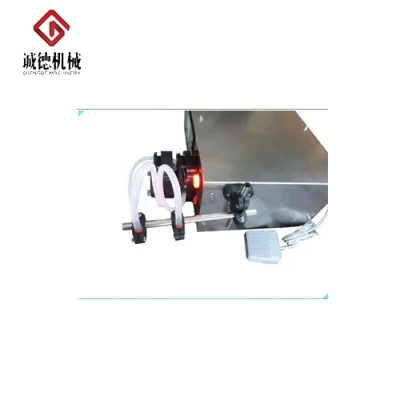

                               Foot switch controls start and stop.

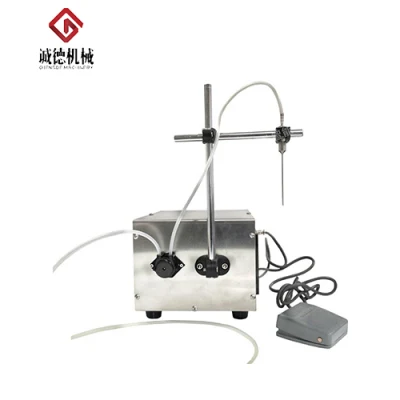

Ditron-Tech Factory Direct Price Perfume Vial Essential Oil Bottle Olive Oil Filling Machine
Bracket and nozzle filling bracket and 304 stainless steel nozzle inner diameter 4 and 6mm optional screw knob to adjust bracket height and length.

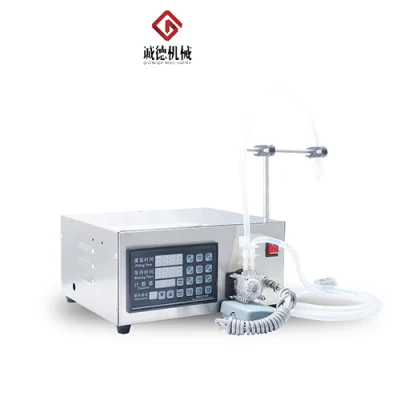

Ditron-Tech Factory Direct Price Perfume Vial Essential Oil Bottle Olive Oil Filling Machine
Time control precise filling time interval setting range: 0.01-999.9 seconds.

Technical Parameters
Voltage:  AC220V,50/60Hz Cooling by air cooling
Max Power Rate:   80W Filling Range: 5-3500ml (depend on filling time and can be customized by customers'demands)
Deviation ±1% Mainframe Size:   350*320*220mm

 Working principle
Peristaltic pump filling machine is a small quantitative liquid filling machine with a built-in peristaltic pump. The main advantage of peristaltic pump is that it does not directly contact the liquid, but only through a hose, such as squeezing a hose full of fluid with your fingers, and the fluid in the pipe moves forward as your fingers slide forward. Peristaltic pump is also based on this principle, but the finger is replaced by the roller. The fluid is  pumped by alternately squeezing and releasing the elastic delivery hose of the pump. Just like squeezing the hose with two fingers, with the movement of fingers, negative pressure is formed in the pipe,and the liquid flows with it.
Scope of application
Peristaltic pump filling machine is widely used in various industries, such as medicine, food, chemical industry, etc. the main liquids that can be filled include low viscosity oils, liquids, and highly corrosive liquids. It is suitable for low-dose filling of essential oils, essential oils, activating collaterals, electronic cigarette oils, eye drops, rhinitis water, nutritional liquids, oral liquids, injections, antirust liquids, acids and bases, etc.

Ditron-Tech Factory Direct Price Perfume Vial Essential Oil Bottle Olive Oil Filling Machine

Company Instruction

Qingzhou Chengde Packing Machinery CO., Ltd was founded in 1998, We are one of the early filling machinery manufacturing enterprises, covering an area of 6000 square meters, and has more than 30 employees. In order to better serve the intelligent packaging machinery of various industries at home and abroad, our employees are regularly trained and constantly improve their technical level. The workshop has newly invested CNC machine tools, large cutting machines, etc To expand production capacity and improve service capacity and service level.

  Ditron-Tech Factory Direct Price Perfume Vial Essential Oil Bottle Olive Oil Filling Machine

Our Factory

Qingzhou Chengde Packing Machinery CO., Ltd is located in caterpillar Industrial Park. It is an enterprise specializing in the production, research and development, manufacturing, sales and service of automatic packaging machinery. Mainly engaged in a variety of filling machines, bottle washing machines, drying machines, sealing machines, labeling machines, inkjet machines, sealing machines and so on.

      Ditron-Tech Factory Direct Price Perfume Vial Essential Oil Bottle Olive Oil Filling Machine

Our Product

Filling machine, bottle washing machine, dryer, capping machine, aluminum foil sealing machine, can sealing machine, labeling machine, inkjet machine, sealing machine and other automatic production equipment.


Ditron-Tech Factory Direct Price Perfume Vial Essential Oil Bottle Olive Oil Filling Machine

A to Z Turnkey Projects
Ditron-Tech Factory Direct Price Perfume Vial Essential Oil Bottle Olive Oil Filling Machine



Our Service
 Ditron-Tech Factory Direct Price Perfume Vial Essential Oil Bottle Olive Oil Filling Machine

The factory is responsible for making the progress plan of the project within one week after signing the contract to ensure the implementation of the project according to the time specified in the contract; without the consent of Party A, the schedule shall not be delayed. Our factory adopts the after-sales service mode of whole process telephone tracking for the supplied equipment.
Our Certificates
     Ditron-Tech Factory Direct Price Perfume Vial Essential Oil Bottle Olive Oil Filling Machine
Shipping&Delivery
 Ditron-Tech Factory Direct Price Perfume Vial Essential Oil Bottle Olive Oil Filling Machine

Ditron-Tech Factory Direct Price Perfume Vial Essential Oil Bottle Olive Oil Filling Machine
FAQ

Are you manufacturer?



Yes. We are one of leading manufacturers for Kinds of Weigh Filling Machine,Piston Filling Machine,Gravity Filling Machine,Flowmeter Filling Machine,Capping Machine & Sealing Machine,many

new production line,etc.

What advantages do you have?



(a).Punctual: Have your orders met with the latest delivery?



We are a manufacturer with so many advanced and new machines.It ensures we have the ability to carry out the production schedual for punctual delivery.



(b). We are factory specializing in the manufacture and export of many kinds of filling machines such as :Weigh Filling Machine,Piston Filling Machine,Gravity Filling Machine,Flowmeter Filling Machine,Capping Machine & Sealing Machine for about 24 years .We have professional designs ,and also our price is very competitive because we are mannu-factory ,we are the source .
