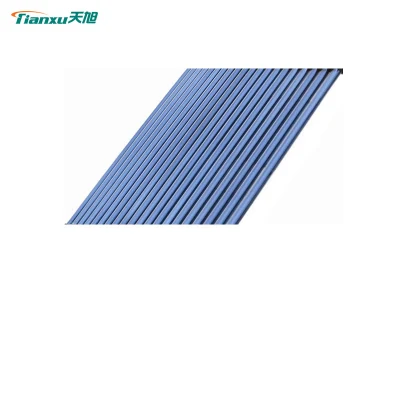

Hi-Tech Solar Vacuum Tubes/Solar Evacuated Tube for Solar Water Heater

Looking for Hi-Tech Solar Vacuum Tubes for your solar water heater? Look no further! We are a factory specializing in producing top-quality solar evacuated tubes.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Process
  • Product Parameters
  • Remarks
  • Company Profile
  • Strategic Partnership
  • Packaging & Shipping
  • Certifications
Overview

Basic Info.

Model NO.
58*1800mm
Pipe Material
Glass
Pressurized
Non-Pressure
Transport Package
Cartons
Specification
58*1800mm
Trademark
Tianxu or OEM
Origin
China
HS Code
8419
Production Capacity
500000 Pieces/Month

Product Description

Product Description

The evacuated tubes consists of two concentric glass tubes which are sealed in a semi-circular shape on one side and are joined to one another on the other side. The space between the tubes is evacuated and hermetically sealed (evacuated insulation). To use solar energy, the internal glass tube is coated with an environmentally friendly, highly selective layer on the outside, thus turning it into an absorber. The selective coating is protected in the evacuated space. The aluminum nitride sputter coating used is characterized by an extremely low emission and a high absorption rate.

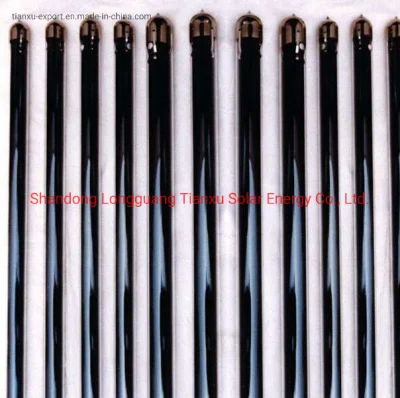

Hi-Tech Solar Vacuum Tubes/Solar Evacuated Tube for Solar Water Heater

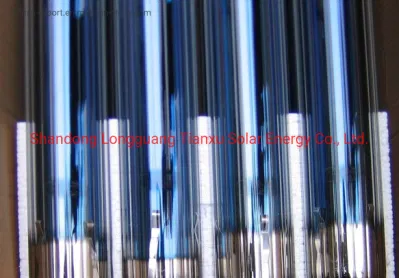

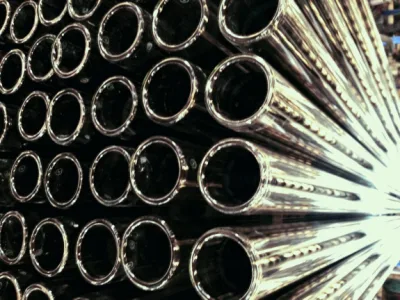

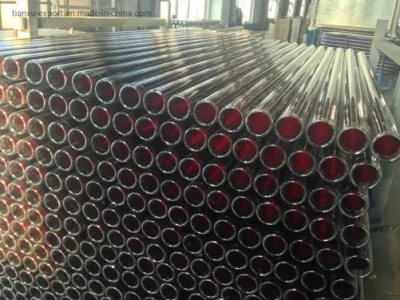

Product Process


Hi-Tech Solar Vacuum Tubes/Solar Evacuated Tube for Solar Water Heater

Product Parameters

Tube Structure All-glass double deck co-axial structure
Glass material  Borosilicate 3.3 glass
Outer tube diameter and glass thickness Φ58+/-0.7mm; glass thickness 1.6+/-0.15mm
Inner tube diameter and glass thickness  Φ47+/-0.7mm; glass thickness 1.6+/-0.15mm
Tube Length 1800mm
Absorber coating  Coating Material  Cu/SS-AIN(H)/SS-AIN(L)
Sediment method Three targets magnetron sputtering plating
Absorptivity 0.93~0.96
Emittance ≤6.0%(80ºC+/-5ºC)
Vacuum degree P ≤5.0X10-3(Pa)
Transmittance of glass tube  T ≥0.89(AM1.5 ISO9806-1:1994
Stagnation parameter Y: 240~250 m2ºC/KW
Average heat loss  ULT≤0.6 W/(m2*ºC)
Hail resistance Φ25mm
Pressure endure 0.6 MPA

Remarks

Cover glass  tube Protect the whole tube.
The space  between  the cover glass tube and the inner glass tube is mechanically evacuated to create a vacuum environment
Inner glass tube Filled with heat transfer fluid (generally water) and directly plugged to the water storage tank
Selective  absorbing  coating Absorbs solar  radiation and transfers  to the fluid in the inner tube.
Retainer Keeps the inner tube fixed.
Getter Absorbs the residual air in the space between the cover glass tube and inner glass tube.



Company Profile

Hi-Tech Solar Vacuum Tubes/Solar Evacuated Tube for Solar Water Heater
Hi-Tech Solar Vacuum Tubes/Solar Evacuated Tube for Solar Water Heater
Hi-Tech Solar Vacuum Tubes/Solar Evacuated Tube for Solar Water Heater

Since its establishment in 2002, Shandong Longguang Tianxu Solar Energy Co., Ltd (hereinafter referred to as "Tianxu") has always engaged itself in the R&D, production, sales and service of high borosilicate glass tubes and new energy products including solar water heaters, solar vacuum tubes, solar heat collecting project, air source heat pump, photovoltaic products, etc.

Tianxu has 10 sets of electric furnaces, 70 sets of solar vacuum tube production line and 3 sets of solar water heater production lines. The annual output has reached one million tons of high borosilicate glass, over 16 million solar vacuum tubes makes Tianxu the largest manufacturing base of high borosilicate glass tubes and solar vacuum tubes.

In 2015, Tianxu established a joint venture company with Beijing Tsinghua Solar Co., Ltd- the solar vacuum tube technology initiator in the world. The newly established company has the world's most advanced solar vacuum tube production lines.

Strategic Partnership

Hi-Tech Solar Vacuum Tubes/Solar Evacuated Tube for Solar Water Heater

Packaging & Shipping

Hi-Tech Solar Vacuum Tubes/Solar Evacuated Tube for Solar Water Heater
Our products have been widely exported to many countries, like Vietnam, India, Mexico, Syria, Korea, Dubai, Etc. we are serving the top brands in solar water heaters for each country. Our yearly export quantity is 600 containers.

Certifications


Hi-Tech Solar Vacuum Tubes/Solar Evacuated Tube for Solar Water Heater
