Basic Info.
Model NO.
R150WVS
Bucket Capacity
0.58m3
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Engine
Qsb7
Rated Power/Speed
124/2050kw/Rpm
Travel Speed(H/L)
10/38km/H
Gradeability
70%
Max. Digging Height
8470mm
Max. Dumping Height
6040mm
Max. Digging Depth
4850mm
Max. Digging Radius
7920mm
Transport Package
Nude
Specification
0.58m3
Trademark
HYUNDAI
Origin
China
HS Code
84295100
Product Description
Hyundai 15ton Wheel Excavator R150WVS Wheel Excavator for Sale
Product Description
More environmentally friendly, more power, faster and lower fuel consumption
New Cummins QSB7 engine with increased torque and lower fuel consumption
Better power curve brings more stable power output
Multiple fuel filtration systems ensure the service life of the engine, while reducing harmful gas emissions, more environmentally friendly
Optimize the oil circuit design of the main control valve, improve the operation speed and compound operation ability
The left operating handle is equipped with a touch deceleration switch, the engine speed will automatically decrease, and the fuel consumption will be reduced
IPC main pump intelligent control system
VPC Variable Power Control System
The IPC system intelligently controls the engine speed and main pump flow in each mode, thereby effectively saving fuel consumption
The VPC system realizes variable control of the power of the main pump, ensuring that the working speed and fuel performance are coordinated and matched in all working modes, ensuring high efficiency and low consumption.
Advanced Hydraulic System
The walking confluence function increases the driving speed at the same time,
Improve equipment climbing performance
Install the forearm flow assembly system and the boom retention system
Parking brake for smoother, more controllable swings
Longer service life of hydraulic oil and filter element
Reliable durability for longer life
Install booms and sticks with better durability, and use cast steel to improve structural strength
Even in harsh working environments, the upper and lower frames can withstand strong impacts and pressure during operation
Reinforced bulldozer connecting rod
Add air gun option to improve the cleanliness of equipment
Adopt Hi-Grade hose with better heat resistance and durability
The outer body of the muffler is suitable for aluminized steel plate and uses improved heat-resistant paint
Newly added air pre-filter, the intake air is cleaner, effectively prolonging the service life of the engine
Cummins QSB7 engine
The QSB7 engine has a good power curve, stable torque, high power and low fuel consumption, meeting the actual needs of market customers.
New Cummins QSB7 engine with increased torque and lower fuel consumption
Better power curve brings more stable power output
Multiple fuel filtration systems ensure the service life of the engine, while reducing harmful gas emissions, more environmentally friendly
Optimize the oil circuit design of the main control valve, improve the operation speed and compound operation ability
The left operating handle is equipped with a touch deceleration switch, the engine speed will automatically decrease, and the fuel consumption will be reduced
IPC main pump intelligent control system
VPC Variable Power Control System
The IPC system intelligently controls the engine speed and main pump flow in each mode, thereby effectively saving fuel consumption
The VPC system realizes variable control of the power of the main pump, ensuring that the working speed and fuel performance are coordinated and matched in all working modes, ensuring high efficiency and low consumption.
Advanced Hydraulic System
The walking confluence function increases the driving speed at the same time,
Improve equipment climbing performance
Install the forearm flow assembly system and the boom retention system
Parking brake for smoother, more controllable swings
Longer service life of hydraulic oil and filter element
Reliable durability for longer life
Install booms and sticks with better durability, and use cast steel to improve structural strength
Even in harsh working environments, the upper and lower frames can withstand strong impacts and pressure during operation
Reinforced bulldozer connecting rod
Add air gun option to improve the cleanliness of equipment
Adopt Hi-Grade hose with better heat resistance and durability
The outer body of the muffler is suitable for aluminized steel plate and uses improved heat-resistant paint
Newly added air pre-filter, the intake air is cleaner, effectively prolonging the service life of the engine
Cummins QSB7 engine
The QSB7 engine has a good power curve, stable torque, high power and low fuel consumption, meeting the actual needs of market customers.
Specification
| Model | Unit | R150WVS |
| Engine model | / | QSB7 |
| Output power of engine | Kw/r/min | 124/2050 |
| Operating Weight | KG | 13780 |
| Max.torque/engine | N.m | 658 |
| Fuel tank capacity | L | 270 |
| Rated flow of main pump | L/min | 2x168+31.5 |
| Hydraulic tank capacity | L | 124 |
| Digging capacity of Bucket | KN | 95 |
| Digging capacity of Bucket rod | KN | 72 |
| Min.turning radius | mm | 6500 |
| Rated speed | KM/h | 10/38 |
| Gradient capability | % | 70 |
| Counterweight ground clearance | mm | 1233 |
| Min.ground clearance | mm | 355 |
| Min.tail swing radius | mm | 2310 |
| Wheelbase | mm | 2800 |
| Track gauge | mm | 1966 |
| Total width of chassis | mm | 2500 |
| Hood height | mm | 2860 |
| Max. digging radius | mm | 7920 |
| Max. digging height | mm | 8470 |
| Max. dumping height | mm | 6040 |
| Max. digging depth | mm | 4850 |
| Maximum depth cut for 2240mm(8 ft) level bottom | mm | 4600 |
| Max. vertical wall digging depth | mm | 4460 |

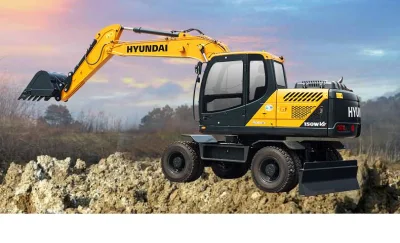

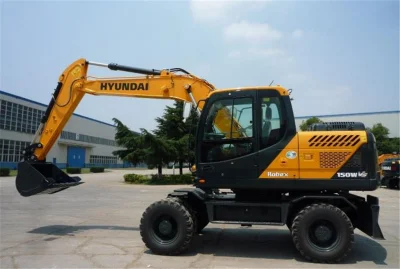

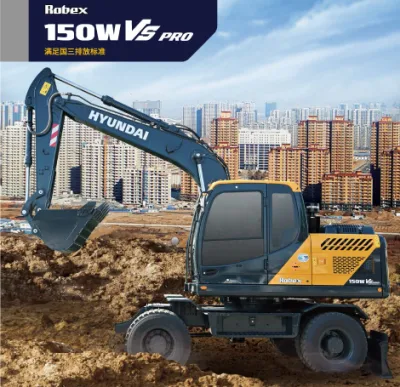

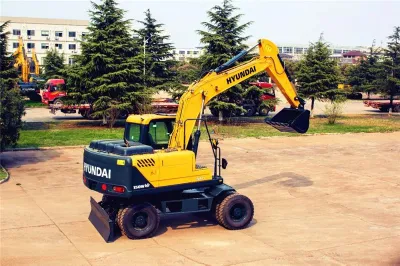

Product Show
