JAC Liugong China Brand Fork Lift 3ton Diesel Forklift Factory Direct

Get reliable and durable JAC Liugong 3ton Diesel Forklift directly from the factory. The best quality at the best price. Contact us now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Product Parameters
  • Maybe you also like
  • Packaging & Shipping
  • Company Profile
  • Our Advantages
  • FAQ
Overview

Basic Info.

Model NO.
3ton diesel forklift
Fuel
Diesel
Load center
500mm
Lift height
3000~5000mm
Condition
New
Fork Size
1070X125X45mm
Full Width
1225mm
Full Length with Cargo Fork
3820mm
Maximum Driving Speed
19km/H
Front Overhang
495mm
Wheelbase
1700mm
Track Width
1000/970mm
Transport Package
Standard Packaging
Specification
4350kg
Trademark
JABIL
Origin
China
HS Code
84272090
Production Capacity
20000pieces/Year

Product Description

Product Description

Heli Hangcha JAC Liugong China brand fork lift 3ton diesel forklift factory direct

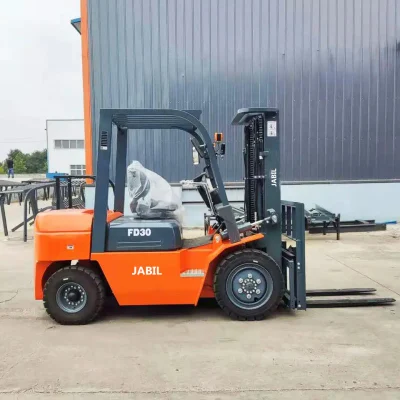

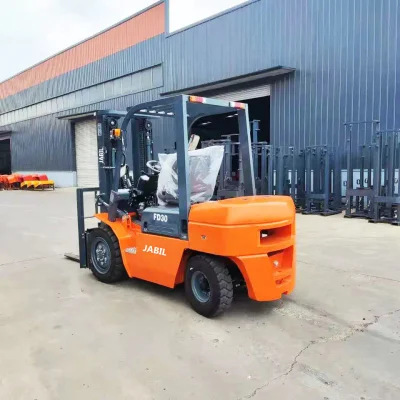

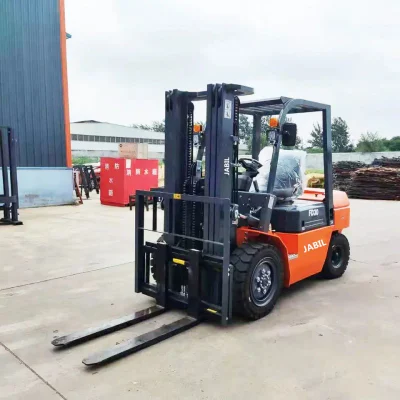

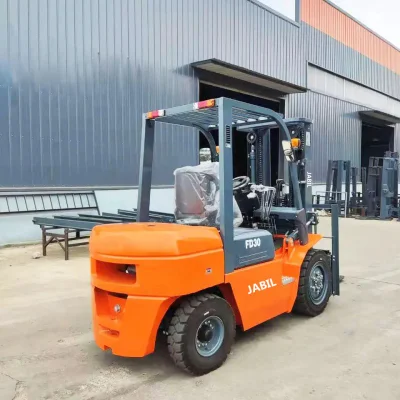

Detailed Photos

JAC Liugong China Brand Fork Lift 3ton Diesel Forklift Factory Direct
JAC Liugong China Brand Fork Lift 3ton Diesel Forklift Factory Direct
JAC Liugong China Brand Fork Lift 3ton Diesel Forklift Factory Direct



Product Parameters

Specification CPC30
1 Fuel model                        diesel
2 Load capacity kg 3000
3 Load center mm 500
4 Lift height mm 3000
5 Full free lift height mm 100
6 Fork dimension mm 1070×125×45
7 Mast tilting angle Deg. 6/12
8 Min.turning radius mm 2400
9 Groud clearance mm 135
10 Overhead guard height mm 2165
11 Front overhang mm 495
12 Max travel speed km/h 19
13 Max lift speed mm/s 480
14 Max.traction power KN 13.5
15 Max. gradeability % 20
16 Total length with fork mm 3820
17 Total length without fork mm 2750
18 Total width mm 1225
19 Mast extended height mm 4265
20 Mast lowered height mm 2060
21 Tyres Front   28x9-15-12PR
22 Type Rear   6.50-10-10PR
23 Wheelbase mm 1700
24 Tread mm 1000/970
25 Service weight Kg 4350
26 Battery V/Ah 12/80
27 Engine model   xinchai
28 Engine power kw/r.p.m 36.8
29 Transmission   Mechanical/Hydraulic
30 Work press Mpa 18.5

Maybe you also like

JAC Liugong China Brand Fork Lift 3ton Diesel Forklift Factory Direct
JAC Liugong China Brand Fork Lift 3ton Diesel Forklift Factory Direct
JAC Liugong China Brand Fork Lift 3ton Diesel Forklift Factory Direct




Packaging & Shipping

JAC Liugong China Brand Fork Lift 3ton Diesel Forklift Factory Direct
JAC Liugong China Brand Fork Lift 3ton Diesel Forklift Factory Direct



Company Profile

JABIL Forklift has always been to build China's Cost-Effective High quality forklifts for the purpose of continuous research and development and innovation.All the products meet all the internationally required manufacturing standards and Quality control certifications including CCC, ISO 9001, ISO 16949, CE and EGS etc.

Our Advantages

1. The integral hood is adopted to improve the appearance of the forklift body covering, increase the space for the driver's legs, and reduce the noise exposure of the engine compartment caused by poor cooperation between the hood and the rear floor;
2. High-quality heat insulation material, the operator will not be affected by the heat generated by the engine;
3. Solid tires can be selected, with high wear resistance coefficient, good elasticity and good driving experience;
4. The high-position integrated combination lamp can accurately and clearly convey the operating status of the forklift, which is safe and reliable;
5. The water tank cover is stamped and formed in one piece, which is durable and beautiful;
6. Optimize the ergonomic dimensions of the steering wheel, seat, instrument frame and driving space, etc., to improve the driver's operating comfort and ease of use.



FAQ

1: Are you a manufacturer or a trading company?
A: We are manufacturer, we have our own factory and trading company.
2: What kind of payment terms can be accepted?
A: For the payment terms, L/C, T/T, DA, D/P, Western Union are acceptable(ok)
3. How about the minimum order quantity?
A: The MOQ is 1 piece.
4. How about the sample policy?
We can accept sample order to test the quality, but the sample and courier cost should be borne by the customer,
5. How long will it take to execute my order?
Please tell us the quantity and model of the products you want to order, so that we can give you a detailed schedule.
6. How will I know that my order is complete?
After receiving the deposit, we will arrange production immediately. After the order is completed, we will also send you the inspection picture of your order before delivery for your confirmation.
7. Can you arrange the shipment for us?
Yes, we will notify you when the order is completed, and we can also arrange shipment at the same time. There are LCL shipping and FCL shipping with different order deadlines, and the buyer can also choose air or sea shipping according to your requirements. The logistics company will notify you when your order arrives at the nearest sea or river port
8. Can you guarantee your products?
Yes, we guarantee your 100% satisfaction with all of our products
If you are not satisfied with our quality or service, please feel free to reply to us. If the product does not meet the contract requirements, we will replace it for you free of charge or give compensation in the next order.
9. Can I visit your company?
Of course, we are always happy to serve you. We have a showroom in Taian, China, if you want to order our products and visit our company, please contact us to make an appointment.
10. Do you provide custom designs?
Custom designs are certainly available. We have very rich experience in custom shelves
