Manufacturer direct sales High Precision Flanged bearing unit UCF 300 series  Pillow Blocks /Units Agricultural Machinery parts/Bearing Housing

Introducing the UCF 300 series High Precision Flanged bearing unit, Pillow Blocks and Bearing Housing for Agricultural Machinery parts. Manufacturer direct sales.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • More Choices
  • Advantage Products
  • Company Profile
  • Packaging & Shipping
  • Our Advantages
  • FAQ
Overview

Basic Info.

Model NO.
UCF300 series
Rows Number
Single
Raceway
Spherical Raceway
Material
Bearing Steel
Bearing Block Model
F
Compressive Strength
HT200/HT180
Seal
Flat Seal/Star Seal/Triple Seal/F Seal
Application
Agricultural Machinery etc.
Bearing Mode
HCP204-12/HPC215-48
Features
Low Noise/High Precision/Long Life
Cage Material 1
Cast lron / Brass / Bearing Steel
Cage Material 2
stainless Steel / Rubber / Plastic / Ceramic
Cage Material 3
PTEF / Alloy / Carbon Steel
Rolling Material
Steel Ball/Bearing Steel/Stainless Steel/Ceramic
Clearance
C0/C2/C3/C4
Noise&Vibration
Z1V1/Z2V2/Z3V3/Z4V4
Precision Level
P0/P6/P5/P4/P2
Delivery
Fast delivery, Some stocks
Transport Package
Pallet/Carton/Industrial Package / Color Box
Specification
standard/Customized
Trademark
TANN/NEUTRAL/OEM
Origin
China
HS Code
8483200000
Production Capacity
75000000/Year

Packaging & Delivery

Package Size
20.00cm * 30.00cm * 40.00cm
Package Gross Weight
25.000kg

Product Description

Product Description

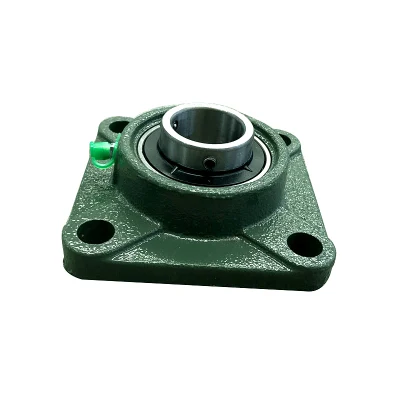

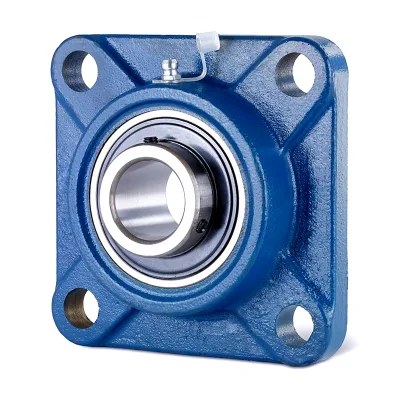

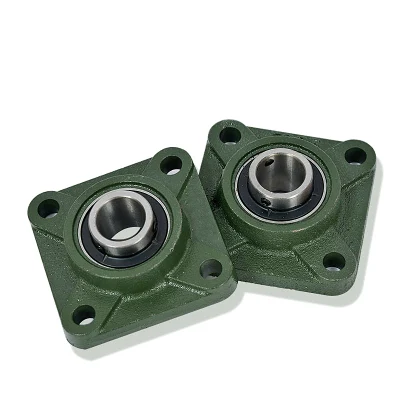

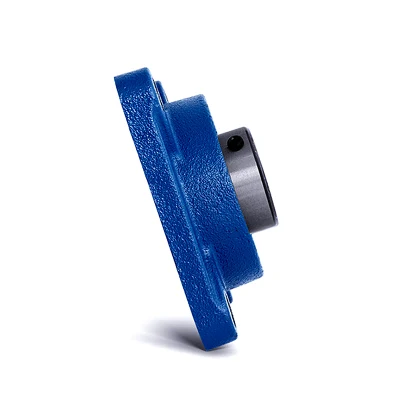

The TANN mounted bearing units is a bearing which combines the spherical outside surface ball bearing, seal, and a housing of high-grade cast iron or pressed steel. It features a variety of structure patterns, and is suitable for application under tough conditions.

Product Parameters


UCF 3 TANN
Square flange unit  - Heavy duty
Set screw type
Manufacturer direct sales High Precision Flanged bearing unit UCF 300 series Pillow Blocks /Units Agricultural Machinery parts/Bearing Housing Manufacturer direct sales High Precision Flanged bearing unit UCF 300 series Pillow Blocks /Units Agricultural Machinery parts/Bearing Housing
Unit No. Dimensions (mm / inch) Bolt Size mm inch Bearing No. Housing No. Weight (kg)
d a e i g l s z B n
UCF305 25 110 80 16 13 29 16 39 38 15 M14 UC305 F305 1.10
UCF305-13 13/16 4-11/32 3-5/32 5/8 1/2 1-5/32 5/8 1-17/32 1.4961 0.59 1/2 UC305-13
UCF305-14 7/8 UC305-14
UCF305-15 15/16 UC305-15
UCF305-16 1 UC305-16
UCF306 30 125 95 18 15 32 16 44 43 17 M14 UC306 F306 1.60
UCF306-17 1-1/16 4-29/32 3-37/64 45/64 19/32 1-1/4 5/8 1-47/64 1.6929 0.669 1/2 UC306-17
UCF306-18 1-1/8 UC306-18
UCF306-19 1-3/16 UC306-19
UCF307 35 135 100 20 16 36 19 49 48 19 M16 UC307 F307 2.00
UCF307-20 1-1/4 5-5/16 3-15/16 25/32 5/8 1-13/32 3/4 1-59/64 1.8898 0.748 5/8 UC307-20
UCF307-21 1-5/16 UC307-21
UCF307-22 1-3/8 UC307-22
UCF307-23 1-7/16 UC307-23
UCF308 40 150 112 23 17 40 19 56 52 19 M16 UC308 F308 2.70
UCF308-24 1-1/2 5-29/32 4-13/32 29/32 21/32 1-9/16 3/4 2-13/64 2.0472 0.748 5/8 UC308-24
UCF308-25 1-9/16 UC308-25
UCF309 45 160 125 25 18 44 19 60 57 22 M16 UC309 F309 3.40
UCF309-26 1-5/8 6-5/16 4-59/64 63/64 23/32 1-23/32 3/4 2-23/64 2.2441 0.866 5/8 UC309-26
UCF309-27 1-11/16 UC309-27
UCF309-28 1-3/4 UC309-28
UCF310 50 175 132 28 19 48 23 67 61 22 M20 UC310 F310 4.50
UCF310-29 1-13/16 6-7/8 5-13/64 1-7/64 3/4 1-7/8 29/32 2-41/64 2.4016 0.866 3/4 UC310-29
UCF310-30 1-7/8 UC310-30
UCF310-31 1-15/16 UC310-31
UCF311 55 185 140 30 20 52 23 71 66 25 M20 UC311 F311 5.50
UCF311-32 2 7-9/32 5-33/64 1-3/16 25/32 2-1/16 29/32 2-51/64 2.5984 0.948 3/4 UC311-32
UCF311-33 2-1/16 UC311-33
UCF311-34 2-1/8 UC311-34
UCF311-35 2-3/16 UC311-35
UCF312 60 195 150 33 22 56 23 78 71 26 M20 UC312 F312 6.50
UCF312-36 2-1/4 7-11/16 5-29/32 1-19/64 7/8 2-7/32 29/32 3-5/64 2.7953 1.024 3/4 UC312-36
UCF312-37 2-5/16 UC312-37
UCF312-38 2-3/8 UC312-38
UCF312-39 2-7/16 UC312-39
UCF313 65 208 166 33 22 58 23 78 75 30 M20 UC313 F313 7.90
UCF313-40 2-1/2 8-3/16 6-17/32 1-19/64 55/64 2-9/32 29/32 3-5/64 2.9528 1.818 3/4 UC313-40
UCF313-41 2-9/16 UC313-41
UCF314 70 226 178 36 25 61 25 81 78 33 M22 UC314 F314 9.50
UCF314-42 2-5/8 8-29/32 6-1/64 1-27/64 31/32 2-13/32 63/64 3-3/16 3.0708 1.299 7/8 UC314-42
UCF314-43 2-11/16 UC314-43
UCP314-44 2-3/4 UC314-44
UCF315 75 236 184 39 25 66 25 89 82 32 M22 UC315 F315 1.20
UCF315-45 2-13/16 9-19/32 7-1/4 1-17/32 31/32 2-19/32 63/64 3-1/2 3.2283 1.26 7/8 UC315-45
UCF315-46 2-7/8 UC315-46
UCF315-47 2-15/16 UC315-47
UCF315-48 3 UC315-48
UCF316 80 250 196 38 27 68 31 90 86 34 M27 UC316 F316 14.00
UCF316-49 3-1/16 9-27/32 7-23/32 1-1/2 1-1/16 2-11/16 1-7/32 3-35/64 3.3858 1.339 1 UC316-49
UCF316-50 3-1/8 UC316-50
UCF316-51 3-3/16 UC316-51
UCF317 85 260 204 44 27 74 31 100 96 40 M27 UC317 F317 16.00
UCF317-52 3-1/4 10-1/4 8-1/32 1-47/64 1-1/16 2-29/32 1-7/32 3-15/16 3.7795 1.575 1 UC317-52
UCF317-53 3-5/16 UC317-53
UCF317-55 3-7/16 UC317-55
UCF318 90 280 216 44 30 76 35 100 96 40 M30 UC318 F318 19.00
UCF318-55 3-7/16 11-1/32 8-1/2 1-47/64 1-3/16 3 1-3/8 3-15/16 3.7795 1.575 1-1/8 UC318-55
UCF318-56 3-1/2 UC318-56
UCF319 95 290 228 59 30 94 35 121 103 41 M30 UC319 F319 22.00
UCF319-58 3-5/8 11-13/32 8-31/32 2-21/64 1-3/16 3-11/16 1-3/8 4-49/64 4.0551 1.614 1-1/8 UC319-58
UCF319-59 3-11/16 UC319-59
UCF319-60 3-3/4 UC319-60
UCF320 100 310 242 59 32 94 38 125 108 42 M33 UC320 F320 26.00
UCF320-64 12-7/32 12-7/32 9-17/32 2-21/64 1-1/4 3-11/16 1-1/2 4-29/32 4.252 1.654 1-1/4 UC320-64
UCF322 110 340 266 60 35 96 41 131 117 46 M36 UC322 F322 38.00
UCF324 120 370 290 65 40 110 41 140 126 51 M36 UC324 F324 50.00
UCF326 130 410 320 65 45 115 41 146 135 54 M36 UC326 F326 66.00
UCF328 140 450 350 75 55 125 41 161 145 59 M36 UC328 F328 90.00
More Choices

Our main product ranges are ball bearings and full ranges of mounted bearing units, including 60 series, 62series, 63 series; thin-wall bearing such as 68 series and 69 series, and also flange bearings, inch bearings, high precision angular contact bearing; UC/UCP/UCF/UCFL/UCT, etc. Non-standard bearings based on customer's demand are available too.

Wide range of products from strong supplying supplying chains to make suitable solution.

Manufacturer direct sales High Precision Flanged bearing unit UCF 300 series Pillow Blocks /Units Agricultural Machinery parts/Bearing Housing

Advantage Products





Manufacturer direct sales High Precision Flanged bearing unit UCF 300 series Pillow Blocks /Units Agricultural Machinery parts/Bearing Housing
Manufacturer direct sales High Precision Flanged bearing unit UCF 300 series Pillow Blocks /Units Agricultural Machinery parts/Bearing Housing
Manufacturer direct sales High Precision Flanged bearing unit UCF 300 series Pillow Blocks /Units Agricultural Machinery parts/Bearing Housing
Manufacturer direct sales High Precision Flanged bearing unit UCF 300 series Pillow Blocks /Units Agricultural Machinery parts/Bearing Housing
Manufacturer direct sales High Precision Flanged bearing unit UCF 300 series Pillow Blocks /Units Agricultural Machinery parts/Bearing Housing
Manufacturer direct sales High Precision Flanged bearing unit UCF 300 series Pillow Blocks /Units Agricultural Machinery parts/Bearing Housing




Features

Rational self- alignment
Larger load carrying capacity, relubrucable, longer service life of the units
Efficient, sealing ability of the units with covers is perfect
Solid housing, provide max rigidty against deformation for any condition
Easy and positive locking to shaft
Special heat-treatment on bearing inner ring prevent causing cracking
Unique device to prevent bearing outer ring rotation
Complete interchangeability between bearing and housing
Easy installlation
Easy positioning for mounting

Application

Agriculture Mining
Engineering Chemical machinery
Textile Plastic
Dyeing and fining Other industries
Company Profile

About Us

Focus on a variety of industries
Provide maintenance solutions
Optimize customer inventory and reduce cost

Established in 2012, Xiamen Granville is a branch of the Granville Group. With our experience, competitive prices and excellent service, we have won the praise of our customers. Our business involves standard and special industrial parts, automotive parts and construction machinery parts required for a variety of different industrial applications.
Our main products include
Bearing series :
ball bearings, deep groove ball bearings, self-aligning ball bearings, angularcontact ball bearings, cylindrical roller bearing, tapered roller bearings, thrust ball bearings, thrust rollerbearings, needle bearings, spherical bearings, joint bearings, pillow blocks, linear bearings, etc.
Accessories series:Automotive Spare Parts,Seals & O-rings ,Power transmission parts Chain and Sprocket
Our products are mainly exported to Europe, America, Middle East, Southeast Asia, India, Pakistan, Bangladesh, Singapore, Korea and other countries around the world. We have a large number of products in stock, which can be delivered with high efficiency in the shortest possible time to solve your matching problems in time. In addition, we have reliable quality and quantity of products to offer. We adhere to the principle of win-win situation and insist on "providing comprehensive quality products and best reputation" to provide excellent services to our customers.
Manufacturer direct sales High Precision Flanged bearing unit UCF 300 series Pillow Blocks /Units Agricultural Machinery parts/Bearing Housing

What We Do

Comprehensive product range:
- Bearings
- Oil seals, Transmission belt
- Chain and Sprocket
- Hub assembly & Wheel bearings
- Coupling, castings
Linear motion

Packaging & Shipping



Manufacturer direct sales High Precision Flanged bearing unit UCF 300 series Pillow Blocks /Units Agricultural Machinery parts/Bearing Housing
Manufacturer direct sales High Precision Flanged bearing unit UCF 300 series Pillow Blocks /Units Agricultural Machinery parts/Bearing Housing
Our Advantages

1. We have the most advanced bearing process equipment, CNC automatic facilities, and testing instruments.
2. We manufacture ball bearings and mounted bearing units, and also provide a strong full range of products, including electric motors and components One-stop partnerships products from our audited supply chain.
3. All products are manufactured exclusively by companies with ISO 9001:2008 certified Quality Systems which use state-of-the-art machines. The quality path starts from the beginning to deliver and goods' quality trackable

Our Values
Behavior-based, service-oriented, focused on results and committed to continuous improvement

Advantage Manufacturing Processes and Quality Control:

01Heat Treatment
02 Centerless Grinding Machine 11200 (most advanced)
03 Automatic Production Lines for Raceway
04 Automatic Production Lines for Raceway
05 Ultrasonic Cleaning of Rings
06 Automatic Assembly
07 Ultrasonic Cleaning of Bearings
08 Automatic Greasing, Seals Pressing
09Measurement of Bearing Vibration (Acceleration)
10 Measurement of Bearing Vibration (Speed)
11 Laser Marking
12 Automatic Packing



After Sales Service

  1. Optimize customer inventory and reduce cost
  2. Provide maintenance solutions



Quality Warranty

Granville as a manufacturer of high quality products, guarantees compliance with the highest standards relative to the use of the best steel quality in the production process, the highest standards in the design of contact surfaces, as well as the most efficient packing and lubrication of parts. From material coming, quality control through all processes. Except interal test, goods to third party inspection if required. After the center of inspection and experiment being founded, effective methods of inspecting all kinds of raw materials are mastered and then the reliability of bearings is ensured. One of our main objectives is the continued improvement in the quality of our products and processes, in pursuit of which we obtained ISO certification 9001:2008 and TS16949.

FAQ

Q1.Can you accept OEM and customization?

A: Yes. We can customize it according to the samples and drawings you provide.

Q2. Do you keep a stock of these things ?
A: In stocks

Q3.Can you provide samples free of charge?
A: Yes. We can provide samples free of charge. But the freight is paid by the customer.

Q4.What's the delivery date?
A: The delivery time of sample orders is 3 working days.The bulk orders are 5-10 working days.

Q5: Why your price is higher than others?
A: Price = quality . We firmly believe that by the quality of the customer is always get more reliable than on price . So we insist on doing high-quality products.

Q6:What kind of transport do you have ?
A: According to the weight,we will choose the most appropriate mode of transport for you. Our freight forwarding is efficient and cheap
