Overview

Basic Info.

Model NO.
UCLP 206
Rows Number
Single
Raceway
Spherical Raceway
Material
Bearing Steel
Bearing Block Model
P
Compressive Strength
HT200/HT180
Seal
Flat Seal/Star Seal/Triple Seal/F Seal
Application
Agricultural Machinery etc.
Bearing Mode
HCP204-12/HPC215-48
Features
Low Noise/High Precision/Long Life
Cage Material 1
Cast lron / Brass / Bearing Steel
Cage Material 2
stainless Steel / Rubber / Plastic / Ceramic
Cage Material 3
PTEF / Alloy / Carbon Steel
Rolling Material
Steel Ball/Bearing Steel/Stainless Steel/Ceramic
Clearance
C0/C2/C3/C4
Noise&Vibration
Z1V1/Z2V2/Z3V3/Z4V4
Precision Level
P0/P6/P5/P4/P2
Delivery
Fast delivery, Some stocks
Transport Package
Pallet/Carton/Industrial Package / Color Box
Specification
standard/Customized
Trademark
TANN/NEUTRAL/OEM
Origin
Fujian, China
HS Code
8483200000
Production Capacity
75000000/Year

Packaging & Delivery

Package Size
20.00cm * 30.00cm * 40.00cm
Package Gross Weight
21.000kg

Product Description

Product Description

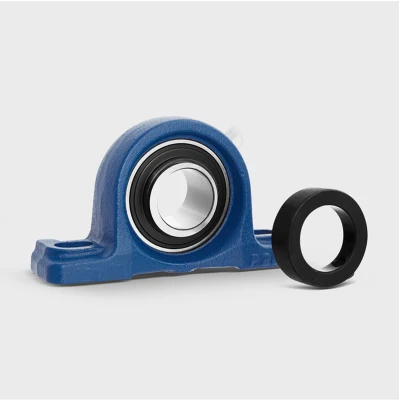

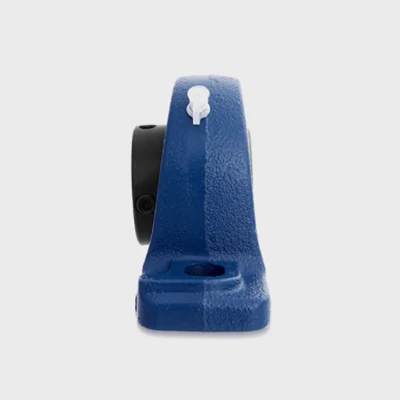

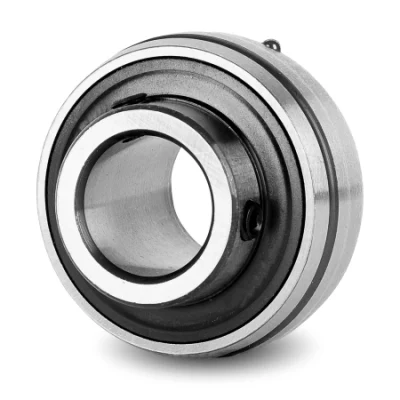

The TANN mounted bearing units is a bearing which combines the spherical outside surface ball bearing, seal, and a housing of high-grade cast iron or pressed steel. It features a variety of structure patterns, and is suitable for application under tough conditions.

Product Parameters
UCLP 2 TANN
Pillow blcoks - Height reduced duty
Set screw type
Manufacturer direct sales UCLP 2 series High Precision Pillow Blocks/Units Agricultural Machinery parts/engine/Bearing Housing Manufacturer direct sales UCLP 2 series High Precision Pillow Blocks/Units Agricultural Machinery parts/engine/Bearing Housing
Unit No. Dimensions (mm / inch) Bolt Size mm inch Bearing No. Housing No. Weight (kg)
d h a e b s1 s2 g w B n
UCLP201 12 31.75 127 95 38 13 16 14 64 31 12.7 M10 UC201 LP204 0.69
UCLP201-8 1/2 1-1/4 5 3-3/4 1-1/2 1/2 5/8 9/16 2-33/64 1 .2205 0.5 3/8 UC201-8 0.69
UCLP202 15 31.75 127 95 38 13 16 14 64 31 12.7 M10 UC202 LP204 0.69
UCLP202-9 9/16 1-1/4 5 3-3/4 1-1/2 1/2 5/8 9/16 2-33/64 1.22 0.5 3/8 UC202-9 0.69
UCLP202-10 5/8 UC202-10 0.69
UCLP203 17 31.75 127 95 38 13 16 14 64 31 12.7 M10 UC203 LP204 0.68
UCLP203-11 11/16 1-1/4 5 3-3/4 1-1/2 1/2 5/8 9/16 2-33/64 1.22 0.5 3/8 UC203-11 0.67
UCLP204 20 31.75 127 95 38 13 16 14 64 31 12.7 M10 UC204 LP204 0.66
UCLP204-12 3/4 1-1/4 5 3-3/4 1-1/2 1/2 5/8 9/16 2-33/64 1.22 0.5 3/8 UC204-12 0.66
UCLP205 25 33.34 140 105 38 13 16 15 68 34.1 14.3 M10 UC205 LP205 0.81
UCLP205-13 13/16 1-5/16 5-1/2 4-1/8 1-1/2 1/2 5/8 19/32 2-43/64 1.34 0.56 3/8 UC205-13 0.85
UCLP205-14 7/8 UC205-14 0.83
UCLP205-15 15/16 UC205-15 0.82
UCLP205-16 1 UC205-16 0.81
UCLP206 30 39.69 160 121 44 17 20 17 80 38.1 15.9 M14 UC206 LP206 1.24
UCLP206-17 1-1/16 1-9/16 6-19/64 4-3/4 1-47/64 43/64 25/32 21/32 3-5/32 1 .5000 0.63 1/2 UC206-17 1.27
UCLP206-18 1-1/8 UC206-18 1.26
UCLP206-19 1-3/16 UC206-19 1.24
UCLP206-20 1-1/4 UC206-20 1.23
UCLP207 35 46.04 167 127 48 17 20 18 91 42.9 17.5 M14 UC207 LP207 1.58
UCLP207-20 1-1/4 1-13/16 6-9/16 5 1-7/8 43/64 25/32 45/64 3-37/64 1.69 0.69 1/2 UC207-20 1.64
UCLP207-21 1-5/16 UC207-21 1.61
UCLP207-22 1-3/8 UC207-22 1.58
UCLP207-23 1-7/16 UC207-23 1.55
UCLP208 40 49.2 184 137 54 17 20 18 100 49.2 19 M14 UC208 LP208 1.89
UCLP208-24 1-1/2 1-15/16 7-1/4 5-13/32 2-1/8 43/64 25/32 45/64 3-15/16 1.94 0.75 1/2 UC208-24 1.93
UCLP208-25 1-9/16 UC208-25 1.90
UCLP209 45 52.39 190 146 54 17 20 20 104 49.2 19 M14 UC209 LP209 2.14
UCLP209-26 1-5/8 2-1/16 7-15/32 5-3/4 2-1/8 43/64 25/32 25/32 4-3/32 1 .9370 0.75 1/2 UC209-26 2.24
UCLP209-27 1-11/16 UC209-27 2.20
UCLP209-28 1-3/4 UC209-28 2.14
UCLP210 50 55.56 206 159 60 20 23 21 112 51.6 19 M16 UC210 LP210 2.66
UCLP210-29 1-13/16 2-3/16 8-1/8 6-1/4 2-3/8 25/32 29/32 53/64 4-13/32 2.03 0.75 5/8 UC210-29 2.78
UCLP210-30 1-7/8 UC2 10-30 2.73
UCLP210-31 1-15/16 UC210-31 2.68
UCLP210-32 2 UC210-32 2.64
UCLP211 55 61.91 219 171 60 20 23 23 124 55.6 22.2 M16 UC211 LP211 3.31
UCLP211-32 2 2-7/16 8-5/8 6-17/64 2-3/8 25/32 29/32 29/32 38176 2.19 0.87 5/8 UC211-32 3.46
UCLP211-33 2-1/16 UC211-33 3.40
UCLP211-34 2-1/8 UC211-34 3.35
UCLP211-35 2-3/16 UC211-35 3.29
UCLP212 60 68.26 241 184 70 20 23 25 136 65.1 25.4 M16 UC212 LP212 4.90
UCLP212-36 2-1/4 2-11/16 9-1/2 7-1/4 2-3/4 25/32 29/32 63/64 5-23/64 2.56 1 5/8 UC212-36 5.03
UCLP212-37 2-5/16 UC212-37 4.95
UCLP212-38 2-3/8 UC212-38 4.88
UCLP212-39 2-7/16 UC212-39 4.81
More Choices

Our main product ranges are ball bearings and full ranges of mounted bearing units, including 60 series, 62series, 63 series; thin-wall bearing such as 68 series and 69 series, and also flange bearings, inch bearings, high precision angular contact bearing; UC/UCP/UCF/UCFL/UCT, etc. Non-standard bearings based on customer's demand are available too.

Wide range of products from strong supplying supplying chains to make suitable solution.

Manufacturer direct sales UCLP 2 series High Precision Pillow Blocks/Units Agricultural Machinery parts/engine/Bearing Housing

Advantage Products





Manufacturer direct sales UCLP 2 series High Precision Pillow Blocks/Units Agricultural Machinery parts/engine/Bearing Housing
Manufacturer direct sales UCLP 2 series High Precision Pillow Blocks/Units Agricultural Machinery parts/engine/Bearing Housing
Manufacturer direct sales UCLP 2 series High Precision Pillow Blocks/Units Agricultural Machinery parts/engine/Bearing Housing
Manufacturer direct sales UCLP 2 series High Precision Pillow Blocks/Units Agricultural Machinery parts/engine/Bearing Housing
Manufacturer direct sales UCLP 2 series High Precision Pillow Blocks/Units Agricultural Machinery parts/engine/Bearing Housing
Manufacturer direct sales UCLP 2 series High Precision Pillow Blocks/Units Agricultural Machinery parts/engine/Bearing Housing




Features

Rational self- alignment
Larger load carrying capacity, relubrucable, longer service life of the units
Efficient, sealing ability of the units with covers is perfect
Solid housing, provide max rigidty against deformation for any condition
Easy and positive locking to shaft
Special heat-treatment on bearing inner ring prevent causing cracking
Unique device to prevent bearing outer ring rotation
Complete interchangeability between bearing and housing
Easy installlation
Easy positioning for mounting
