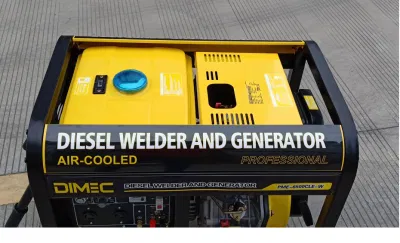

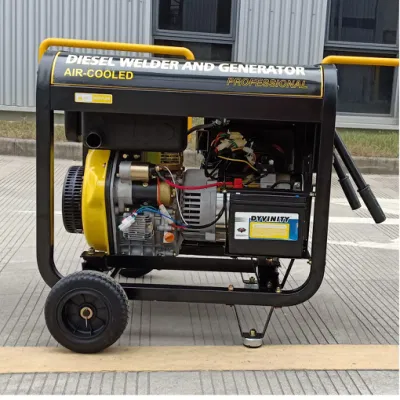

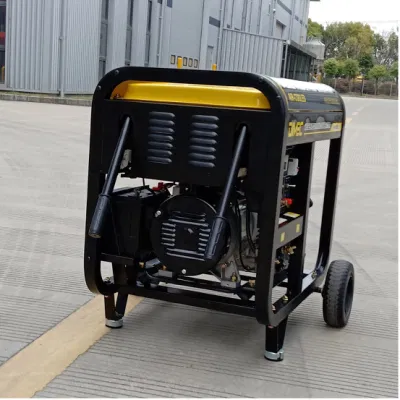

Pme6500cle-W Diesel Welder Generator

Pme6500cle-W Diesel Welder Generator is a reliable choice for industrial welding needs. Manufactured in our factory for quality assurance.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
PME6500CLE-W
Conditions of Use
Land Use
Usage
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit
Low Noise
Fuel Tank Capacity
12.5L
Engine
Pme186fae
Transport Package
Carton
Specification
74x51x67cm
Trademark
DIMEC
Origin
China
HS Code
85021100
Production Capacity
5000 Sets/Month

Product Description

Product Description:
  Model PME6500CLE-W
Alternator Rated frequency [Hz] 50/60
Rated power [kw] 2.0kw (50Hz); 2.2kw (60Hz)
Rated voltage [v] 220,230,240
Power factor 1.0
Phase  Single phase
Welding voltage [v] 25
Rated welding current {A} 160
Current adjusting range{A} 60-180
Welding load ratio 60%
Engine Mode PME186FAE
Type Single-cylinder, vertical, air-cooled, 4-stroke, diesel engine
Starting system Recoil start
Genset Fuel tank capacity [L] 12.5
N.W/G.W 115/120
Package (L x W x H) [cm] 74x51*67

Feature:
Low noise High efficiency combustion system ensures complete combustion. A large silencer dampens exhaust noise and engine sound are contained in a double wall structure and absorbed.
Alternator winding Waveform distortion is kept at a minimum level with a stable output. The winding design protect the generator from short circuit and provide a stable output while running inductive loads.
Low oil alarm system Before the oil level drops to a dangerous level, the generator will stop automatically. It can be restarted after the proper oil level is restored.
ATS as optional The automatic transfer switch can be applied to dual voltage, single phase and three phase generator sets. When utility power fails, a automatic transfer switch senses the loss of power and immediately starts the generator. Once utility power is restored, the transfer switch shifts your electric load back to utility power and shuts off the generator.
The automatic transfer switch can be mounted inside the generator or attached as an optional accessory. Most generators in this series are equipped with brushless alternators which establish stable voltage in a minimum amount of time.

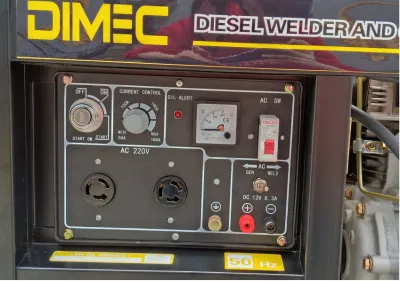

Digital control panel as optional All control functions of the generator are on a central panel. A digital display indicates the real time performance data of the generator, such as voltage, frequency, oil pressure and battery condition.
Packaging Standard export carton packing.Packing is the Carton made of strong,sturdy wooden
Compressive strength and corrosion resistance
Shipping 25-30days after confirming order,detail delivery date should be decided according to production season and order quantity.

Pme6500cle-W Diesel Welder Generator
Pme6500cle-W Diesel Welder Generator
Pme6500cle-W Diesel Welder Generator
Pme6500cle-W Diesel Welder Generator
Pme6500cle-W Diesel Welder Generator
Pme6500cle-W Diesel Welder Generator


Pme6500cle-W Diesel Welder Generator

ABOUT US:
5+ years workers;             10+ years sales experience;           Export to 68+ countries;

Strong technical team

One QC for each production line,monitor production status in real time.
15mins running before packing for each machine.
Strictly material control
Casual inspection for material and spare parts.
>500pcs, Inspection rate 10%
100-500pcs,Inspection rate 20%, ;
< 100pcs,Inspection rate 100%

FAQ:

01
What is the delivery time?
25-30days after deposit.

02
What is the warranty?
One year, during the warranty, we supply spare parts for free if the machines are broken. Excluding wearing parts.

03
What engines can you supply?
Honda engine, Robin engine, Loncin engine, Lifan engine, Kipor diesel engine and so on. We can use engine against clients' request.

04
What certificates do you have?
CE, GS, Noise certificate, EPA...

05
Can you supply OEM,ODM?
Yes, our company can produce against to clients' request.
