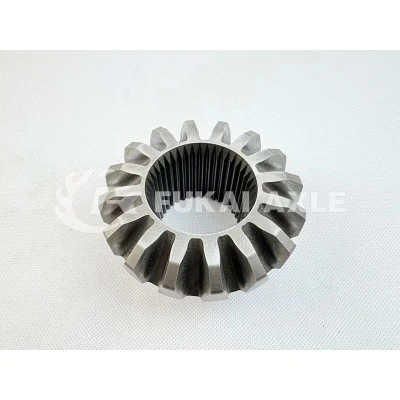

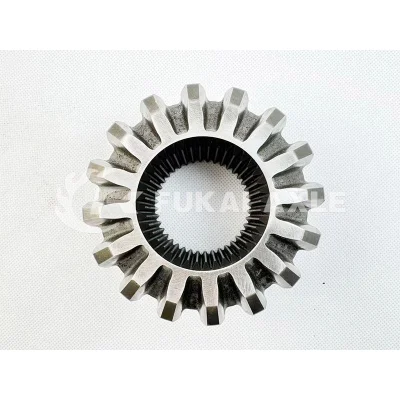

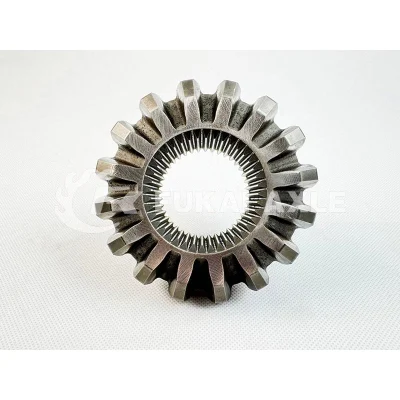

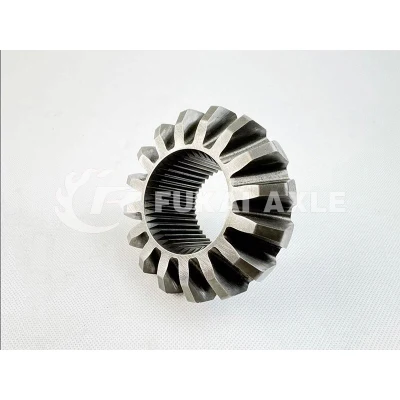

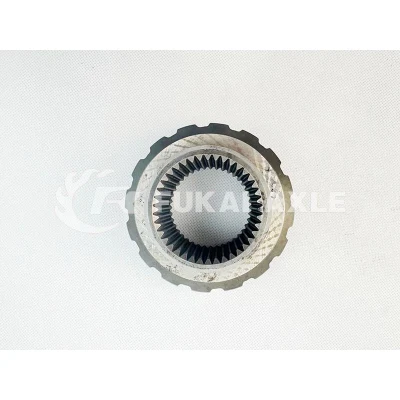

Supplier Axle Shaft Side Gear for Iveco Dump Truck Spare Parts 42104286

Get high-quality Side Gear for Iveco Dump Truck Spare Parts 42104286 from our factory. We offer reliable and durable products to keep your truck running smoothly.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Factory Show
  • More Products
  • Working Principle
  • Packaging & Shipping
  • Certifications
  • FAQ
Overview

Basic Info.

Model NO.
42104286
Certification
SGS
Transmission System Parts
Drive Axle
Color
as Picture
Main Market
Global
Model No.
42104286
Application
Iveco
Parts
Truck Axle Differential Parts Side Gear
Truck Model
Heavy Dump Truck Parts
Quality
High Quality; OEM Original
Size
OEM Standard Size
MOQ
1 PCS
Automatic
Automatic
Sample
Available
Custom-Made
Factory Support Customization
Technology
Forging
Transport Package
Standard Package, Wooden Case
Specification
Standard Component
Trademark
Fukai Axle
Origin
Jinan, Shandong, China
HS Code
8708507990
Production Capacity
5000 PCS/Month

Product Description

Factory Customized Supplier Axle Shaft Side Gear For Iveco Dump Truck Spare Parts 42104286

Supplier Axle Shaft Side Gear for Iveco Dump Truck Spare Parts 42104286

Helpful Links

For instant communication, please click here
For our catalogs, please click here
For our home page, please click here


Supplier Axle Shaft Side Gear for Iveco Dump Truck Spare Parts 42104286

(1) Accessory products of the truck, use 20CrMmti material.
(2) Heat treatment and tempering, high gear root strength, stronger impact resistance.
(3) Multi-purpose furnace carburizing processing, fine grinding processing technology, effectively reducing noise.
(4) Test product one by one, and inspect each product on delivery to ensure 100% quality stability of the product.
(5) The unified brand carton, inner bag and integral foam packaging, which is strong and beautiful.
(6) Passed ISO/TS16949:2009 quality management system certification.
(7) Passed ISO/IEC17025:2005 certification.
(8) Certified by National Laboratory Accreditation Committee.
(9) "100 Auto Parts Suppliers" in China.
(10) China Machinery Top 500.
(11) National first-class measurement enterprise.
(12) National first-class physical and chemical enterprise.

Factory Show

Supplier Axle Shaft Side Gear for Iveco Dump Truck Spare Parts 42104286
Supplier Axle Shaft Side Gear for Iveco Dump Truck Spare Parts 42104286

More Products
42127913
42102306
42119547 42064798
42102342 42102308 42064785
42101828 42102312 42118227
42102291
42119549
42100842 42118098
42118096
42118097
42118099
42102309 42037399
42128171

42102346 42102288
42101751 42119546 42064800
42101765 42117674 42101713
42119540 42117686 42104286
42102347 42064799

Supplier Axle Shaft Side Gear for Iveco Dump Truck Spare Parts 42104286
Truck Model Sinotruk, Shacman, Saic HongyanFoton Auman, FAW Jiefang, Dongfeng, European & Japanese Truck Series, North BENZ( BEIBEN), JAC, etc.
Product catalogue Axle Wheel Assembly
Differential Assembly
Main Reducer Assembly
Inner Ring Gear& Bracket
Basin Angle Gear/ Bevel Gear
Axle Shaft/ Half Shaft & Through Shaft
Axle Housing& Axle Assembly
Steering knuckle & Front Axle
Gear
Brake Drum& Wheel Hub
Flange
Bearing
Main Reducer Housing
Oil Seal Seat
Nut& Shim Series
Brake Backing Plate
Chassis Support Products Leaf Spring Bracket
Drop Arm Series
Bracket Series
Leaf Spring Shackle Series
Balanced Suspension Series Balance Shaft Assembly
Balance Shaft Housing
Axle Spring Seat
Thrust Rod
Balance Shaft Parts
Shock Absorber Series Shock Absorber
Shock Absorbing Airbag
Steering System Power Steering Pump
Power Steering Gear
Rubber Products Oil Seal
Rubber Support
Thrust Rod Rubber Core
Truck Belt
Engine support
Other
Clutch Series Clutch Pressure Plate
Clutch Disc
Flywheel Assembly
Flywheel Ring Gear
Adjusting Arm Series

Supplier Axle Shaft Side Gear for Iveco Dump Truck Spare Parts 42104286 Supplier Axle Shaft Side Gear for Iveco Dump Truck Spare Parts 42104286

Working Principle

Single reduction gear is a driving bevel gear (commonly known as angular gear) and a basin angle gear pair. The driving bevel gear is connected with the transmission shaft, rotates clockwise, sticks to its right side from the bevel gear, and rotates downward at the meshing point, which is consistent with the forward direction of the wheel. Due to the small diameter of the driving bevel gear and the large diameter of the bevel gear, the function of deceleration is achieved.
The double reduction has an additional intermediate transition gear.The left side of the driving bevel gear is meshed with the bevel gear of the intermediate gear. The bevel gear is coaxial with a spur gear with small diameter, and the spur gear is meshed with the driven gear. In this way, the intermediate gear rotates backward and the driven gear rotates forward. There is a two-stage deceleration process in the middle.
Due to the increase of axle volume, double reduction was mainly used in vehicles with low engine power in the past, mainly in construction machinery with low speed and high torque.
In the double reduction final drive, if the second-stage deceleration is carried out near the wheel, it actually constitutes an independent part at the two wheels, it is called wheel reducer. The advantage of this is that the torque transmitted by the half shaft can be reduced, which is conducive to reducing the size and quality of the half shaft. The wheel reducer can be planetary gear type or composed of a pair of cylindrical gear pairs. When the cylindrical gear pair is used for wheel side deceleration, the up-down position relationship between the wheel axis and the half shaft can be changed by adjusting the mutual position of the two gears. This kind of axle is called portal axle, which is often used for vehicles with special requirements for the high and low position of the axle.
According to the number of the main reducer transmission ratio, it can be divided into single-speed and double-speed.
Domestic cars basically adopt single speed main reducer with fixed transmission ratio. On the double reduction final drive, there are two transmission ratios for selection, and this main reducer actually acts as an auxiliary transmission.

Packaging & Shipping

Supplier Axle Shaft Side Gear for Iveco Dump Truck Spare Parts 42104286

Certifications

Supplier Axle Shaft Side Gear for Iveco Dump Truck Spare Parts 42104286

FAQ

Q1. How to guarantee your after-sales service?
Strict inspection during production, Strictly check the products before shipment to ensure our packaging in good condition. Track and receive feedback from customer regularly. Our products warranty is 365 days.
Each product provides quality assurance service. If there is a problem with the product within the warranty period, the customer can negotiate with us in detail about the related claims, and we will do our best to satisfy the customer.

Q2. How can I accurately buy the products I need?
We need accurate product number, If you can't provide product number, you can send us your product picture, or tell us your truck model, engine name plate, and so on. we will
determine exactly what you need products.

Q3. Do you accept third party inspection?
Yes.we do

Q4. How about your delivery time?
Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. What are your brand agency conditions and advantages?
After we sign an agent in one city, we will not sign a second company to protect the agent's brand advantage and price advantage. And we will help the agent develop customers and solve all kinds of difficult and miscellaneous problems about products.

Q6. What is your terms of payment?
By TT or LC. We'll show you the photos of the products and packages before you pay the balance.
