Textile Weaving Machine New Product 2020 Manufacturing Plant Provided Textile Industry Air Jet Loom Clio 197 Engine Loom

Introducing our latest textile weaving machine, the Clio 197 Engine Loom! Manufactured at our state-of-the-art plant, it's a game-changer in the textile industry.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Product Parameters
  • Our Advantages
  • After Sales Service
  • Company Profile
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
JLH9200.
Precision
Precision
Certification
CE, ISO9001: 2000, Textile Machine SGS
Warranty
1 Year
Customized
Customized
Condition
New
After-sales Service
1 Year
Machine Working Width
190cm-280cm
Mainly Used for
Light and Medium Density Fabric
Take up
Electronic
Let off
Electronic
Shedding
Cam/Dobby/Jaquard
Weft Selection
2 Color 4 Color; 6 Color
Weft Density
25-150pick/Inch
Textile Machine
Weaving Machine
Transport Package
Bulk
Specification
CE; ISO9100: 2000
Trademark
JINLIHUA
Origin
Shandong, China
HS Code
8446305000
Production Capacity
1500 Sets / Year

Product Description

Textile Weaving Machine New Product 2020 Manufacturing Plant Provided Textile Industry Air Jet Loom Clio 197 Engine Loom
Textile Weaving Machine New Product 2020 Manufacturing Plant Provided Textile Industry Air Jet Loom Clio 197 Engine Loom
Textile Weaving Machine New Product 2020 Manufacturing Plant Provided Textile Industry Air Jet Loom Clio 197 Engine Loom

Textile Weaving Machine New Product 2020 Manufacturing Plant Provided Textile Industry Air Jet Loom Clio 197 Engine Loom
Textile Weaving Machine New Product 2020 Manufacturing Plant Provided Textile Industry Air Jet Loom Clio 197 Engine Loom

Textile Weaving Machine New Product 2020 Manufacturing Plant Provided Textile Industry Air Jet Loom Clio 197 Engine Loom
Textile Weaving Machine New Product 2020 Manufacturing Plant Provided Textile Industry Air Jet Loom Clio 197 Engine Loom





Product Description

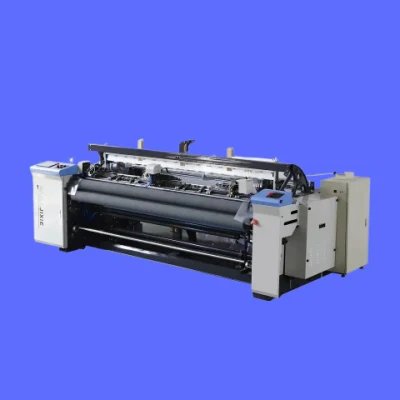

Air jet loom textile weaving machine Model JLH9200

It is our newly developped air jet loom ,ame with Tsudakoma ZAX9100,but with much lower price.
JLH9200 is the most advanced high speed air jet loom with wide weaving range, stable operation, saving gas and electricity, reducing production cost and improving production efficiency. Compared with other models, it can save 20%-30% of electricity and achieve efficiency of over 90%. It is more convenient to operate when the machine is moved down.



Detailed Photos



Product Parameters
TECHNICAL PARAMETERS
 Item
Specifications
 Optional parts
 reed space
Nominal reed space :190,210,230,250,280,340,360cm

 Yarn range
2-Nozzle,4-Nozzle,6-Nozzle for free choice



Drive
Direct control and positioning stop through electromagnetic brake

Push-button bimanual operation and forward-reverse inching motion

Ultra start motor 3.0KW (Cam shedding)3.7KW(Dobby shedding) 6.5KW (Jacquard shedding)



Weft insertion
Main nozzle and sub-nozzle combined type
 Stretch nozzle
Adopt profile reed

Auxiliary main nozzle



shedding
Positive cam shedding: Heald Frames max.8 pcs

Dobby shedding: Heald Frame max.16pcs

Jacquard shedding



Let-off
Positive easing,double back girder

Single warp beam (below 280cm)
Twin-beam
Positive easing,double back girder

Flange dia: 800
914;1000





Take up
Electronic take-up
Mechanical winding
Pick density range:25~205pcs/inch(mechanical take-up),25~300pcs/inch (electronic take-up)

Length counter:display of weaving reports, with fixed-length stop function

Max. Take-up dia.: φ600mm(cam, dobby,jacquard shedding); φ520mm (crank shedding)

Temple:top-mounted type.


 Beating-up
Crank type multiple sley sword beating-up mechanism

4-Link rod beating-up(190~280om),6-Link rod beating-up (above 280cm)

Measuring/storing
Vibrating type pick storer

Weftstand
Floor-mounted 4 cones (2-nozzle);floor-mounted 8 cones(4-nozzle

Selvedge
Planetary gear motion

Waste filling removal
Catch cord type

Cutter
Mechanical type

Lubrication
Oil bath system for the main driving parts,centralized lubrication by manual
Automatic centralized lubrication


Auto-stop motion
Weft yarn:photoelectric weft feeler, double feelers

Warp yarn: electric contact-type 6-row droppers

Others: stop motion for selvedge and calch cord yarn

Stop cause indication: information display on toluch screen, multiple function 4-color lamp display



Automation
Artificial intelligent touch screen:with functions of parameter setting, Auto control, automatic monitoring, self-diagnosis.

Pick finding device: automatic shed finding

Slow inching by inverter(forward,reverse)

USB data interface




Textile Weaving Machine New Product 2020 Manufacturing Plant Provided Textile Industry Air Jet Loom Clio 197 Engine Loom
Textile Weaving Machine New Product 2020 Manufacturing Plant Provided Textile Industry Air Jet Loom Clio 197 Engine Loom



Our Advantages
  1. The company fully implemented 6S management,has access to "ISO9001:2000","CE","SGS"certification.
  2. Established in 1973.The professional R&D team has more than 40 years of practical experience in scientific research and production, providing technical support for continuously optimizing product production and improving product quality.
  3. We have established multiple offices overseas to provide customers with more convenient services.Our engineers can help customers master the use of the machine in a short time.
  4. Help customers design plant drawings and calculate the input-output ratio.
  5. Our machines are of reliable quality. Indian customers have used it for more than 9 years.
  6. Our after-sale quality guarantee time is 1.5 years,higher than peers.
  7. We are very familiar with the standards of the medical industry and customer needs.And familiar with the related equipment of the entire industry, can provide customers with a complete set of services.Save customers a lot of unnecessary troubles and improve the operating efficiency of the entire project.
After Sales Service
  1. The professional R&D team has more than 40 years of practical experience in scientific research and production, providing technical support for continuously optimizing product production and improving product quality.
  2. We have established multiple offices overseas to provide customers with more convenient services.Our engineers can help customers master the use of the machine in a short time.
  3. Our after-sale quality guarantee time is 1.5 years,higher than peers.
  4. Provide procurement and technical guidance for all equipment,plant layout and plant operations,machine maintenance and train.
    Company Profile

    Textile Weaving Machine New Product 2020 Manufacturing Plant Provided Textile Industry Air Jet Loom Clio 197 Engine Loom
    Established in 1973.manufacture and exporter of air jet loom,medical gauze loom,water jet loom and whole production line of cloth and medical gauze.

    Depends on reliable quality and price,our product has good reputation from customer.

    Our vision:Win-Win Cooperation,develop together with custome

Textile Weaving Machine New Product 2020 Manufacturing Plant Provided Textile Industry Air Jet Loom Clio 197 Engine Loom
Textile Weaving Machine New Product 2020 Manufacturing Plant Provided Textile Industry Air Jet Loom Clio 197 Engine Loom
Textile Weaving Machine New Product 2020 Manufacturing Plant Provided Textile Industry Air Jet Loom Clio 197 Engine Loom
Textile Weaving Machine New Product 2020 Manufacturing Plant Provided Textile Industry Air Jet Loom Clio 197 Engine Loom


  Textile Weaving Machine New Product 2020 Manufacturing Plant Provided Textile Industry Air Jet Loom Clio 197 Engine Loom
Packaging & Shipping



Textile Weaving Machine New Product 2020 Manufacturing Plant Provided Textile Industry Air Jet Loom Clio 197 Engine Loom
FAQ
Textile Weaving Machine New Product 2020 Manufacturing Plant Provided Textile Industry Air Jet Loom Clio 197 Engine Loom
Q:Are you factory or trade company?
A:We are factory with trade department

Q:What kind of product do you make?
A:Water jet loom,air jet loom,medical gauze loom

Q:Do you have engineer work available in abroad?
A:Yes,we have more than 20 engineers for sales service in domestic and abroad.

Q:Which market has your water jet loom and air jet loom?
A:We sold machine in India,Pakistan,Russa,Uzbekistan,Tailand,Korea,Indonesia,Ethopia,
 South Africa,Turkey,Uganda.

Q:How can we go to your factory?
A:Arrive at Qingdao air port,take one hour to our factory by car.We will pick you up from air port.



For any further question,just contact us,we will reply you within 20 minitues
