Basic Info.
Product Description
Tractor John Dir

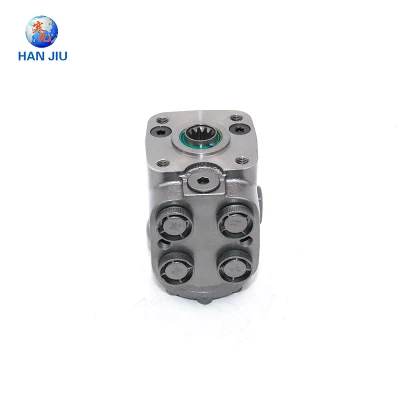

HANJIU supply the orbitrol steering units for tractor JOhn Dir
the brand is Hanjiu , world first class
excellent quality
Application Model
John Deere Serie 40: 1640 1840 1840F 2040 2040S
John Deere Serie 41: 2141 2541 2941 3141 3641
John Deere Serie 50: 1550 1750 1850 1950 2250 2250F 2450 2450F 2650 2650F 2650N 2850 3050 3350
John Deere Serie 51: 2251 2351 2651 2951 3351 3651
John Deere Serie 55: 2755TS
Best Quality Guaranteed, Best Price Guaranteed
Orbital steering valve for Tractor, Forklift OSPC OSPB HKU HKUS
101S series hydraulic control unit 's shape ,internal structure ,performance are same as Danfooss OSPC**ON, M+S HKUS***/4 , Eaton 401-1***, Sinjin N/Y***E.
| Product Name | 101S series hydraulic orbital steering valve |
| Displacement (ml/r) | 50, 80, 100, 125, 160, 200, 250, 315, 400ml |
| Max, input pressure (MPa) | 17.5 |
| Max.manual steering torque (N.m) | 130 |
| Relief valve pressure settings (MPa) | 6-----17.5 |
| Shock valve pressure settings | 12---23.5 |
| Max. Cont.pressure in line T (MPa) | 2.5 |
| Power steering torque (N.m) | 1.6---204 |
| Parameters | Series 101S-*-***-**-* | ||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
Shijiazhuang HanJiu technology co., LTD., is specialized in the production of BM series cycloid hydraulic motor, the BZZ redirector enterprise, my factory has dozens of high-quality, professional engineering and technical personnel, and more than in 2010, has introduced the most advanced production equipment, is in northern China's largest factories, production of more than 300000 units a year.
My factory specializes in designing and producing the motors and steering gear of any type, from large to small, from low to high, and so on. And can replace danfooss, Eaton, M+S series models. Products are widely used in engineering machinery, mining machinery, metallurgical machinery, petroleum machinery, agricultural machinery, injection molding machinery, fishery machinery and other fields.
My factory take the good faith first, quality first for the purpose, from the employee on-boarding, raw materials into the factory, from parts processing, assembly proposal until products, has a relatively perfect system of product quality. And through CE certification. Our factory is dedicated to the establishment of an internationally renowned brand, looking forward to the long-term cooperation with more demand of hydraulic products.
