Product Description
SHD 355 Wuxi Shengda plastic welder; Butt fusion machine
Application :
Butt fusion machine is suitable forbutt fusion welding of plastic pipes and fittings made of PE,PP, and PVDF in construction site or workshop.
Features :
1. The machine body is equipped with four main clamps with the third clamp axially moved and adjusted.

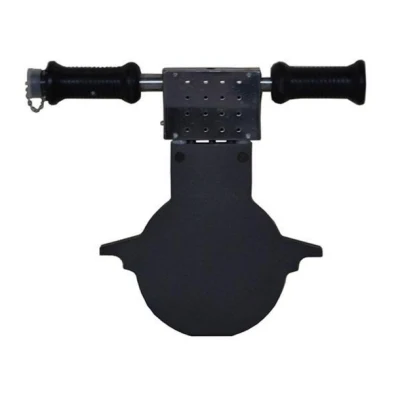

2. Removable PTFE coated heater with separate temperature control systems.

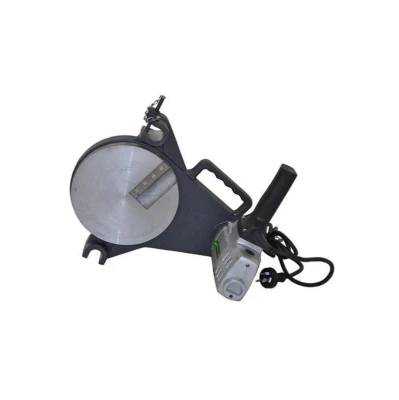

3. Electric facer with reversible ddouble cutting edge blade.

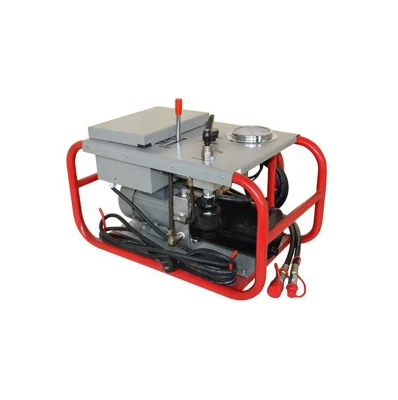

4. Hydraulic unit provides welding machine with compressing power.
5. Be made of lightweight and high strength material; simple structure and easy to operate.
6. Low starting pressure ensures reliable welding quality of small pipes.
7. Separate two-channel timer shows time in soaking and cooling phases.
8. High accurate and shockproof pressure meter indicate clearer reading.
Technical specification :
| QZD 355 | |
| Welding scope (mm) | 160,200,250,315,355 |
| The highest temperature heating plate | 270ºC |
| The heating plate surface temperature difference (170-250ºC) | ≤±5ºC |
| Pressure regulating range | 0.4-6Mpa |
| Working voltage | 220V 50Hz |
| The heating plate power | 4 KW |
| Milling power | 1.1 KW |
| Hydraulic total power | 0.75 KW |
| The total power | 5.85 kW |

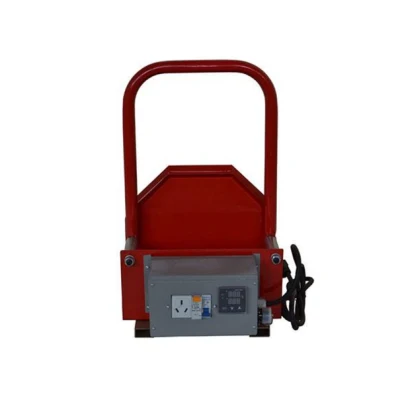

The whole machine consist s of machine body, hydraulic unit, facer , heater,support for heater & facer.
On request (accessories):
1. Flange stud end holder
2. Data logger
Certificate
Packing cases
Company
Our company is the leader manufacturer of butt fusion equipment in china.We occupy the 70% domestic market and export to more than 45 countries.we specialize in producing a complete range of international standard butt fusion equipment including field welding machine,workshop fitting machine,pipe saw,all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.
In 2015, my company joined German ROTHENBERGER tools group, becoming one of the more than 50 companies under the first European big pipe tool production and sellers. with the German headquarters and subsidiaries throughout the world to work together, we will further development of domestic and international market.
